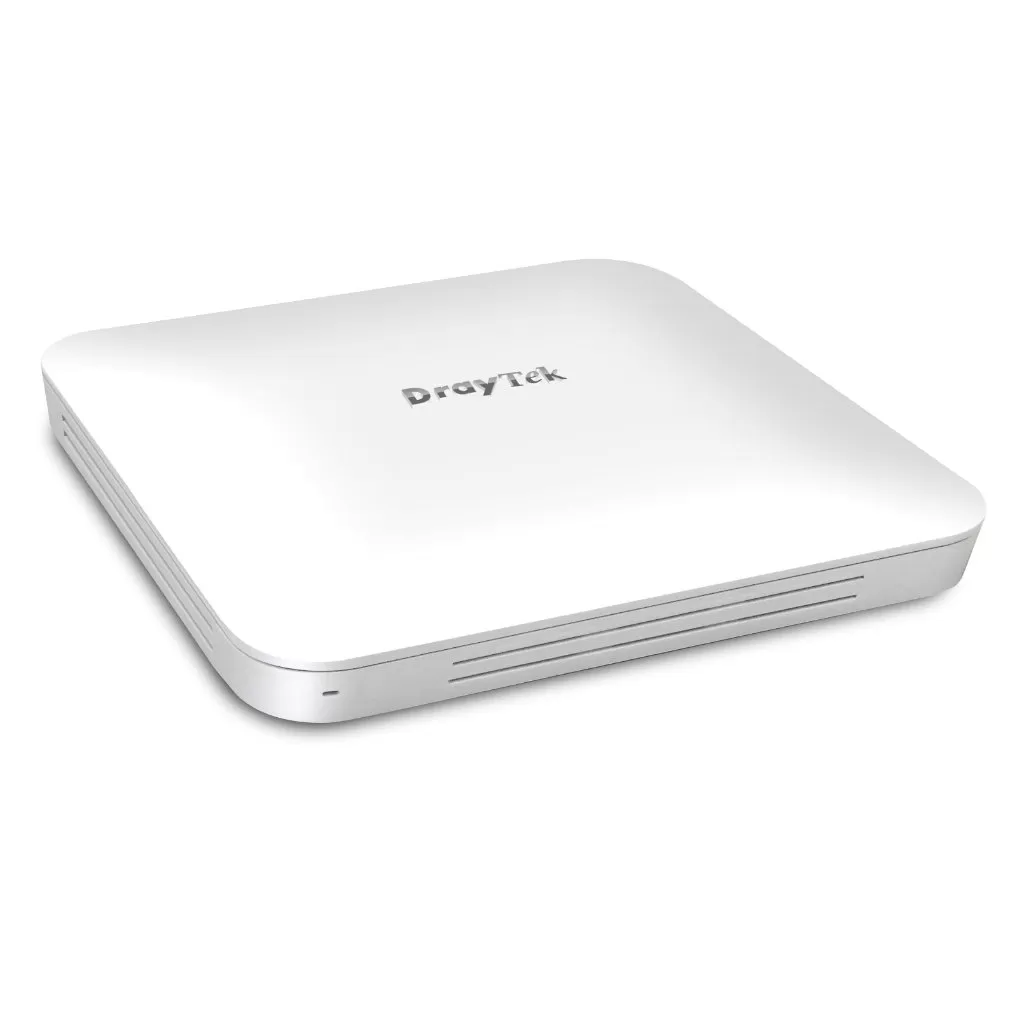

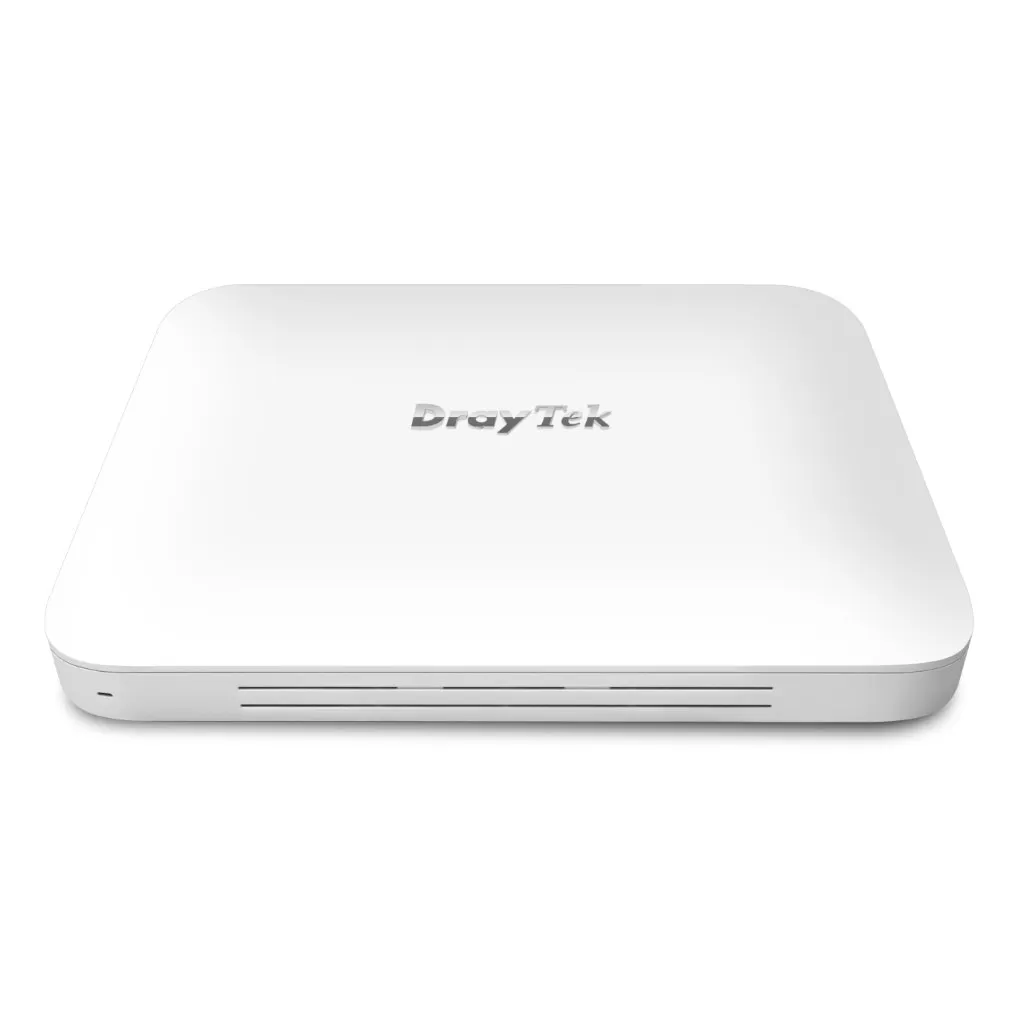

DRAYTEK AP-1000C 400+867 Mbps 2PORT GIGABIT 2.4 GHZ & 5 GHZ MESH WIFI INDOOR ACCESS POINT
14.845,20 TL
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
Draytek VigorAP 1000C Ceiling Wireless PoE Access Point DrayTek VigorAP 1000C üzerinde optimize edilmiş antenler ile tavana monte edilebilen 802.11ac, 384 aynı anda kullanıcı, 2.2Gbps hız ve 8 SSID destekli kablosuz eriş
Sepete eklemeden önce:
bu ürün için sipariş öncesi stok teyidi önerilir; WhatsApp üzerinden hızlı bilgi alabilirsiniz.
DRAYTEK AP-1000C 400+867 Mbps 2PORT GIGABIT 2.4 GHZ & 5 GHZ MESH WIFI INDOOR ACCESS POINT
14.845,20 TL
Teknik Özellikler
Donanım Arayüzleri
| LAN Port | 2x 10/100/1000M Base-T, RJ-45 (PoE-PD Support on Port 1) |
| USB Port | 1x USB2.0 Type A |
| Antenna | 2x Internal PiFA 2.4G Antenna, 4x Internal PiFA 5G Antenna Gain: 2 dBi for 5GHz, 1 dBi for 2.4GHz |
| Indicator | 4x LED 1x Internal Buzzer |
| Button | 1x Factory Reset Button |
| DC Power Jack | 1 |
| Security Lock | 1 |
Fiziksel
| Environment | Indoor |
| Mounting | Ceiling Mount, Wall Mount |
| Power Method | DC 12V @ 2A / 802.3af/at PoE |
| Max. Power Consumption | MAYIS.2 watts |
| Dimension | 176 mm x 176 mm x 30 mm |
| Weight | 460 g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Certificate | CE, FCC |
Güvenlik
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | V |
| MAC Address Filter | Up to 384 entries |
| Wireless Client Isolation | V |
| Mobile Device Management | V |
Kapasite
| 2.4GHz Peak Speed | 400 Mbps |
| 5GHz Peak Speed | 867 Mbps |
| 5GHz-2 Peak Speed | 867 Mbps |
| Max. Clients | 384 (128 per radio band) |
Uygulama
| Built-in RADIUS Server | V |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | V |
| MAC Clone | V |
| 802.1q VLAN | V |
| iOS Keep Alive | V |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off, Sound Buzzer |
WLAN
| 2.4GHz Standard | IEEE 802.11b/g/n 2x2 MIMO |
| 5GHz Standard | IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| AirTime Fairness | V |
| Band Steering | V |
| Auto Channel Selection | V |
| Max. Number of SSID | 12 (4 per radio band) |
| WDS | V |
| Bandwidth Limit per Client | V |
| Client Numer Limit | Per radio, Per SSID |
| Connection Time Control | V |
| WMM | V |
Yönetim
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, Interference Monitor, Where Am I |
| Syslog | V |
| Mail Alert | V |
| SNMP | v1, v2c, v3 |
| Managed by VigorConnect | V |
| Managed by VigorACS | V |
Teknik Özellikler
| Kategori | Access Point |
| Ortam | İç Ortam |
| Frekans | 2.4/5GHz (AC) |
| POE Desteği | Var |
| 3G/4G Desteği | Yok |
| Port Sayısı | 2 Port |
| SFP Desteği | Yok |
| USB Desteği | Yok |
Draytek VigorAP 1000C Ceiling Wireless PoE Access Point
DrayTek VigorAP 1000C üzerinde optimize edilmiş antenler ile tavana monte edilebilen 802.11ac, 384 aynı anda kullanıcı, 2.2Gbps hız ve 8 SSID destekli kablosuz erişim noktasıdır. Özellikle okul kampüsleri, toplantı odaları, kafeler gibi yüksek yoğunluklu ortamlar için ideal bir kablosuz erişim çözümüdür.AirTime Fairness, Band Steering ve Mesh gibi özelliklerin yanı sıra Merkezi AP Yönetimi yazılımı ile uyumludur. 2xGiga LAN Portu vardır
|
Donanım Arayüzleri
|
|
|
LAN Port
|
2x 10/100/1000M Base-T, RJ-45 (PoE-PD Support on Port 1)
|
|
USB Port
|
1x USB2.0 Type A
|
|
Antenna
|
2x Internal PiFA 2.4G Antenna, 4x Internal PiFA 5G Antenna Gain: 2 dBi for 5GHz, 1 dBi for 2.4GHz
|
|
Indicator
|
4x LED 1x Internal Buzzer
|
|
Button
|
1x Factory Reset Button
|
|
DC Power Jack
|
1
|
|
Security Lock
|
1
|
|
Kapasite
|
|
|
2.4GHz Peak Speed
|
400 Mbps
|
|
5GHz Peak Speed
|
867 Mbps
|
|
5GHz-2 Peak Speed
|
867 Mbps
|
|
Max. Clients
|
384 (128 per radio band)
|
|
WLAN
|
|
|
2.4GHz Standard
|
IEEE 802.11b/g/n 2x2 MIMO
|
|
5GHz Standard
|
IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO
|
|
Operating Mode
|
AP, Mesh Root, Mesh Node, Range Extender
|
|
Roaming
|
AP-Assisted Roaming, PMK-Caching, Pre-Authentication
|
|
AirTime Fairness
|
V
|
|
Band Steering
|
V
|
|
Auto Channel Selection
|
V
|
|
Max. Number of SSID
|
12 (4 per radio band)
|
|
WDS
|
V
|
|
Bandwidth Limit per Client
|
V
|
|
Client Numer Limit
|
Per radio, Per SSID
|
|
Connection Time Control
|
V
|
|
WMM
|
V
|
|
Güvenlik
|
|
|
Security Mode
|
WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
|
|
Authentication
|
Personal, Enterprise
|
|
WPS
|
PIN, PBC
|
|
Hidden SSIDs
|
V
|
|
MAC Address Filter
|
Up to 384 entries
|
|
Wireless Client Isolation
|
V
|
|
Mobile Device Management
|
V
|
|
Uygulama
|
|
|
Built-in RADIUS Server
|
V
|
|
RADIUS Proxy
|
PEAP, EAP-TLS
|
|
DHCP
|
DHCP Server, DHCP, Client, DHCP Relay Agent
|
|
Static IP
|
V
|
|
MAC Clone
|
V
|
|
802.1q VLAN
|
V
|
|
iOS Keep Alive
|
V
|
|
Schedule
|
Auto-Reboot, Wi-Fi Up/Down, LED On/Off, Sound Buzzer
|
|
Yönetim
|
|
|
Local Service
|
HTTP, HTTPS, Telnet
|
|
Configuration
|
Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
|
|
Firmware Upgrade
|
HTTP, TFTP, TR-069
|
|
Tools
|
Speed Test, AP Discovery, Statistics, Interference Monitor, Where Am I
|
|
Syslog
|
V
|
|
Mail Alert
|
V
|
|
SNMP
|
v1, v2c, v3
|
|
Managed by VigorConnect
|
V
|
|
Managed by VigorACS
|
V
|
|
Fiziksel
|
|
|
Environment
|
Indoor
|
|
Mounting
|
Ceiling Mount, Wall Mount
|
|
Power Method
|
DC 12V @ 2A / 802.3af/at PoE
|
|
Max. Power Consumption
|
MAYIS.2 watts
|
|
Dimension
|
176 mm x 176 mm x 30 mm
|
|
Weight
|
460 g
|
|
Operating Temperature
|
0 to 45°C
|
|
Storage Temperature
|
-25 to 70°C
|
|
Operating Humidity
|
10 to 90% non-condensing
|
|
Certificate
|
CE, FCC
|
