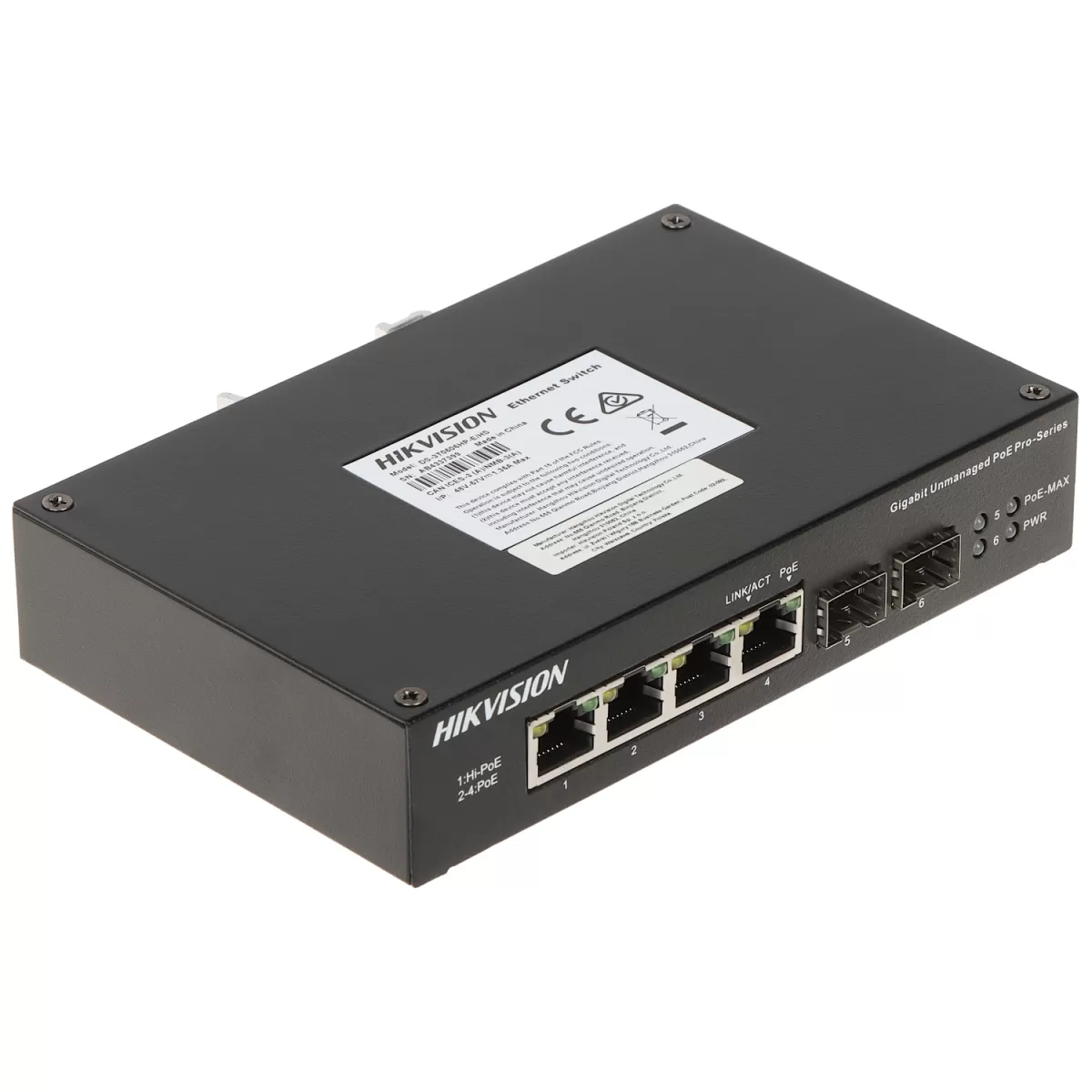

HIKVISION DS-3T0506HP-E/HS(O-STD 4 PORT 10/100/1000 3XGIGA POE + 1XGIGA Hİ-POE 2 X SFP 60W YONETILEMEZ SWITCH
4.148,33 TL
Satın alma
ERTESİ GÜN TESLİMATA UYGUNAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
DS-3T0506HP-E/HS4 Port Gigabit Unmanaged Harsh POE Switch 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports. IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output). IEEE 802.
Sepete eklemeden önce:
lütfen ürün adedini ve varsa ürün seçeneklerini kontrol ediniz. Seçilen seçenek stokta bulunmuyorsa sepete ekleme yapılamaz.
HIKVISION DS-3T0506HP-E/HS(O-STD 4 PORT 10/100/1000 3XGIGA POE + 1XGIGA Hİ-POE 2 X SFP 60W YONETILEMEZ SWITCH
4.148,33 TL
Teknik Özellikler
| Port Sayısı | 4 Port |
| Veri Transfer Hızı | 10/100/1000 |
| Yönetim | Yönetilemez |
| Rackmount | Yok |
| SFP Port | 2 Port 1G Sfp |
DS-3T0506HP-E/HS
4 Port Gigabit Unmanaged Harsh POE Switch
- 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wire-speed forwarding.
- Wider temperature (-30 to 65 °C) design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
1 - LAN + Hi-PoE
2 - LAN + PoE
3 - LAN + PoE
4 - LAN + PoE
5 - SFP
6 - SFP
Mounting side view:
Side view:
The device can be mounted vertically on a DIN TS-35 rail:
Available models:
DS-3T0506HP-E/HS
Specification
Limanlar3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit fiber optical ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working ModeStandard mode (default), Extend mode, Isolation mode, PoE watchdog mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
- Forwarding ModeStore-and-forward switching
- MAC Address Table2 K
- Switching Capacity12 Gbps
- Internal Cache1 Mbits
- Packet Forwarding Rate8.928 Mpps
- Ports For Long-Distance TransmissionPorts 3 and 4
- PoE Power Supply
- PoE Standard
Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPorts 2 to 4
- Max. Port Power
Port 1: 60 W
Ports 2 to 4: 30 W
- PoE Power Budget60 W
- Dialing Function
- Long RangePorts 3 and 4: up to 300 m.
- Port IsolationPorts 1 to 4: port isolation mode to improve network security.
- PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
- General
- Dimensions (W × H × D)158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)
- ShellMetal material, fan-free design
- Gross Weight0.94 kg (2.07 lb)
- Net Weight0.38 kg (0.84 lb)
- Operating Temperature-30 °C to 65 °C (-22 °F to 149°F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Storage Humidity5% to 95% (no condensation)
- Power Consumption In Idle< 5 W
- Power Supply48 to 57 VDC, 1.35 A Max.
- Max. Power Consumption65 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
