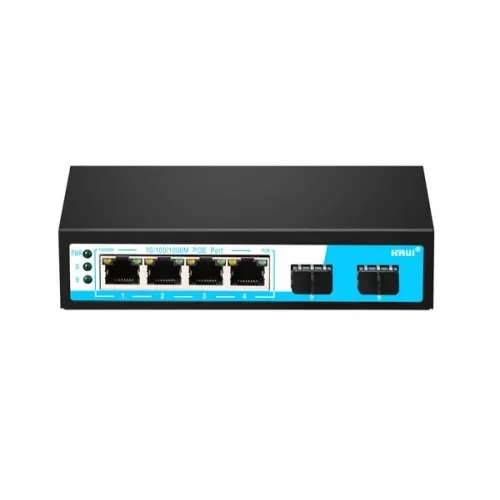

HRUI HR901-AF-4P2S 4 PORT 10/100/1000 4 PORT POE 2 X SFP 65W YONETILEMEZ RACK MOUNT SWITCH
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
◆4*10/100/1000M PoE Ports + 2*1000M SFP Port ; ◆Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards; ◆Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w); ◆Flow control mode: full-duplex adopts IEEE 802.3
HRUI HR901-AF-4P2S 4 PORT 10/100/1000 4 PORT POE 2 X SFP 65W YONETILEMEZ RACK MOUNT SWITCH
Teknik Özellikler
| Port Sayısı | 4 Port |
| Veri Transfer Hızı | 10/100/1000 |
| Yönetim | Yönetilemez |
| Rackmount | Yok |
| SFP Port | 2 Port 1G Sfp |
◆4*10/100/1000M PoE Ports + 2*1000M SFP Port ;
◆Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards;
◆Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆Support port auto flip (Auto MDI/MDIX);
◆Exchange mechanism using store-and-forward;
◆All ports support wire-speed switching;
◆Automatically supplied to adaptive devices;
◆Panel indicator monitoring status and help failure analysis.
Connector Type：4 Ports 10/100/1000M PoE + 2 Port 1000M SFP Uplink
Network Protocols：IEEE802.3，IEEE802.3u，IEEE802.3ab，IEEE802.3x ，IEEE802.3z
PoE Parameters： PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W (IEEE 802.3af)
Max each port：30W (IEEE 802.3at)
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media：10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-T: Cat 5 UTP(≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)
Optical Multi Mode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Bandwidth: 12Gbps
MAC Address: 2K
Packet Buffer Memory: 1M
Packet Forwarding Rate: 8.928Mpps
Forwarding Mode: Store-And-Forward
Power Supply：Adapter Input Voltage: AC100-240V;Product Input Voltage: DC48-55V, Output: 52V1.25A, Power Budget: 65W
Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 85℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
Product Dimension (L*W*H): 140mm*85mm*30mm
Package Dimension (L*W*H): 303mm*190mm*60mm
N.W: 0.33KG
G.W: 0.92KG
MTBF：100,000 hours
Certification：CE ,RoHS, FCC, CCC
Warranty：2 years
