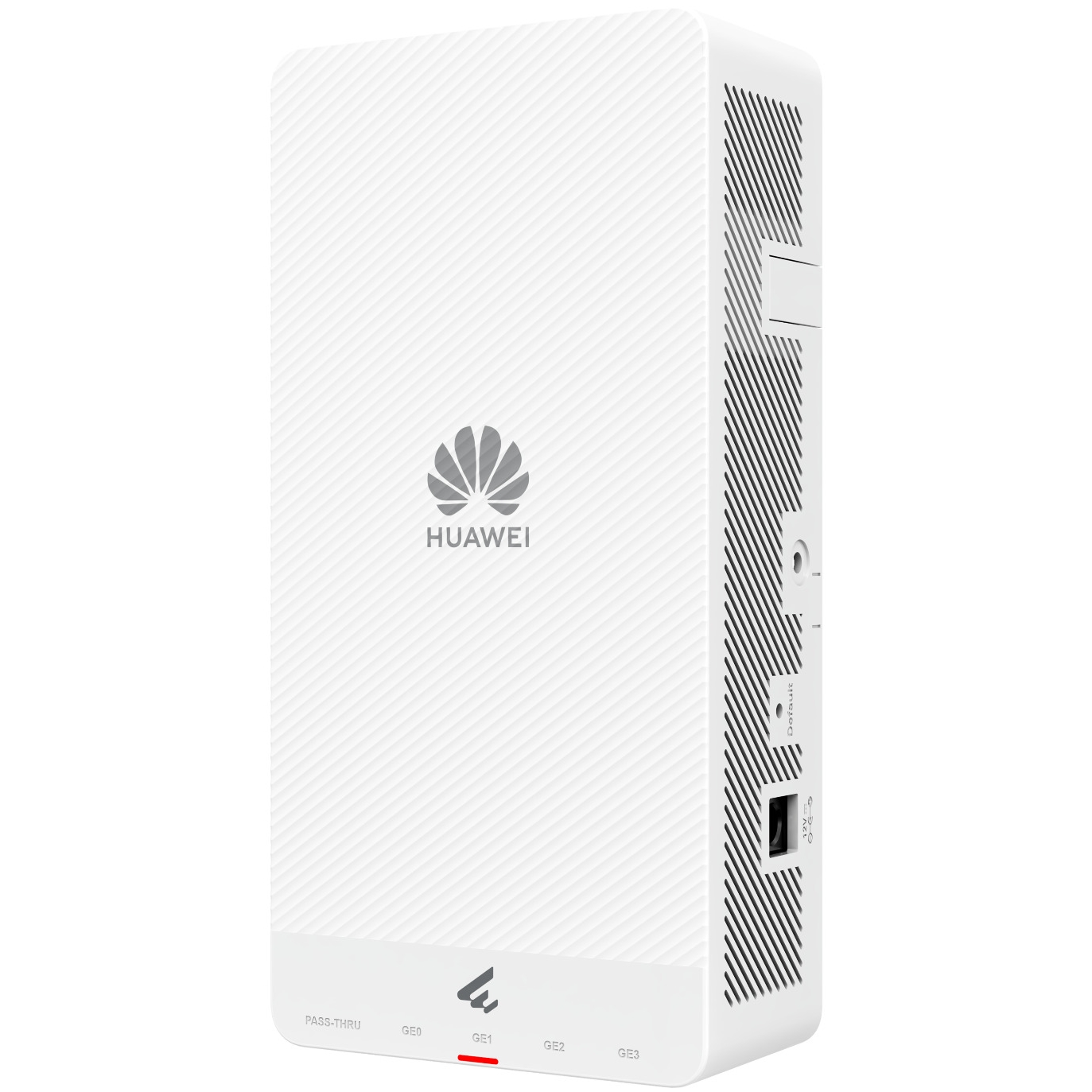

HUAWEI eKIT AP271E BE3600 Wi-Fi 7 3570 Mbps 4PORT 1 X POE OUT PORT 2x2 MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ
26.806,96 TL
Satın alma
AYNI GÜN TESLİMATAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
HUAWEI eKIT AP271E BE3600Wi-Fi 7 3570 Mbps 4PORT 1 X POE OUT PORT 2x2 MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be Installation Type Wall,
Sepete eklemeden önce:
lütfen ürün adedini ve varsa ürün seçeneklerini kontrol ediniz. Seçilen seçenek stokta bulunmuyorsa sepete ekleme yapılamaz.
HUAWEI eKIT AP271E BE3600 Wi-Fi 7 3570 Mbps 4PORT 1 X POE OUT PORT 2x2 MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ
26.806,96 TL
Teknik Özellikler
| Kategori | Access Point |
| POE Desteği | Var |
| 3G/4G Desteği | Yok |
| Port Sayısı | 4 Port |
| Ortam | İç Ortam |
| Frekans | WiFi 7 |
| SFP Desteği | Yok |
| USB Desteği | Yok |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be |
| Installation Type | Wall,Ceiling,Junction Box (86 mm/1-Gang 120 mm/Octagonal) |
| Optimal Signal Distance (m) | 18 |
| Max Number of Access Users | 256 |
| Recommended Number of Access Users | 80 |
| Device Rate | 3.57 Gbps |
| Power supply mode | PoE,DC power adapter |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 4, 10M/100M/1000M auto-sensing 2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing PASS-THRU (RJ45) x 2 |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz |
| Maximum transmit power | 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Maximum power consumption [W] | 13.2 (excluding USB) |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Dimensions without packaging (H x W x D) [mm(in.)] | 175 mm x 86 mm x 45 mm (6.89 in. x 3.39 in. x 1.77 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 72 mm x 245 mm x 118 mm (2.83 in. x 9.65 in. x 4.65 in.) |
| Weight without packaging [kg(lb)] | 0.405 kg (0.89 lb) |
| Weight with packaging [kg(lb)] | 0.65 kg (1.43 lb) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) |
| Operating frequency band | 2.4GHz,5GHz |
HUAWEI eKIT AP271E BE3600
Wi-Fi 7 3570 Mbps 4PORT 1 X POE OUT PORT 2x2 MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be |
| Installation Type | Wall,Ceiling,Junction Box (86 mm/1-Gang 120 mm/Octagonal) |
| Optimal Signal Distance (m) | 18 |
| Max Number of Access Users | 256 |
| Recommended Number of Access Users | 80 |
| Device Rate | 3.57 Gbps |
| Power supply mode | PoE,DC power adapter |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 4, 10M/100M/1000M auto-sensing 2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing PASS-THRU (RJ45) x 2 |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz |
| Maximum transmit power | 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Maximum power consumption [W] | 13.2 (excluding USB) |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Dimensions without packaging (H x W x D) [mm(in.)] | 175 mm x 86 mm x 45 mm (6.89 in. x 3.39 in. x 1.77 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 72 mm x 245 mm x 118 mm (2.83 in. x 9.65 in. x 4.65 in.) |
| Weight without packaging [kg(lb)] | 0.405 kg (0.89 lb) |
| Weight with packaging [kg(lb)] | 0.65 kg (1.43 lb) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) |
| Operating frequency band | 2.4GHz,5GHz |
