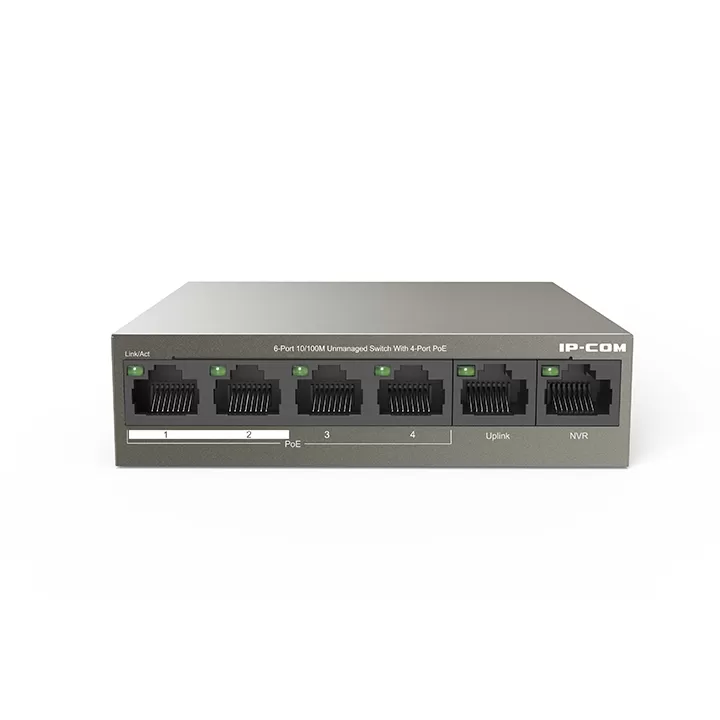

IP-COM IP-F1106P-4-63W 4 PORT 10/100 4 PORT POE 2 X FE UPLINK 63W YONETILEMEZ DESKTOP SWITCH
1.461,68 TL
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
F1106P-4-63W 6-Port 10/100M Unmanaged Switch With 4-Port PoE Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/at standards 4 * 10/100 Mbps Base-TX RJ45 ports for data transmission and power supply 2 *
Sepete eklemeden önce:
bu ürün için sipariş öncesi stok teyidi önerilir; WhatsApp üzerinden hızlı bilgi alabilirsiniz.
IP-COM IP-F1106P-4-63W 4 PORT 10/100 4 PORT POE 2 X FE UPLINK 63W YONETILEMEZ DESKTOP SWITCH
1.461,68 TL
Teknik Özellikler
| Port Sayısı | 4 Port |
| Veri Transfer Hızı | 10/100 |
| SFP Port | Yok |
| Yönetim | Yönetilemez |
| Rackmount | Yok |
| Uplink Port | 2 PORT UPLINK |
| Product model | F1106P-4-63W |
| Standard&Protocol | IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at |
| Indicator | 6 * Link/Ack LED indicators 1 * Power LED indicator |
| Interface | 4 * 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 * 10/100 Mbps Base-TX RJ45 ports (Data) |
| Port Lightning Protection | 6KV for uplink port |
| Store and forward | Yes |
| Exchange Capacity | 1.2 Gbps |
| Packet forwarding rate | 1.34Mpps |
| MAC Address Table | 1K |
| PoE supply management | Port 1-4 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +;3 6 7 8 - |
| Voltage input range | AC: 100-240V～50/60Hz DC: 51V 1.25A |
| Dimensions ( W x D x H ) | 100*100*26mm |
| Power Consumption | In full configuration: 63W PoE Max Power Supply: 58W |
| Port Features | Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. Extend:ports 1 to 4 are isolated from each other,but can communicate with ports 6 (uplink port) respectively. |
| Environment | Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
F1106P-4-63W
6-Port 10/100M Unmanaged Switch With 4-Port PoE
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/at standards
- 4 * 10/100 Mbps Base-TX RJ45 ports for data transmission and power supply
- 2 * 10/100 Mbps Base-TX RJ45 ports for data transmission
- 1 K MAC address table and MAC address auto-learning
- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
- 1.2 Gbps backplane bandwidth
- Maximum power consumption of a single port:30W
- Maximum power consumption of the switch: 58W
- Supports extend mode and QoS function
- Supports desktop and wall-mounting, plug and play
| Product model | F1106P-4-63W |
| Hardware features | |
|---|---|
| Standard&Protocol | IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at |
| Indicator | 6 * Link/Ack LED indicators 1 * Power LED indicator |
| Interface | 4 * 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 * 10/100 Mbps Base-TX RJ45 ports (Data) |
| Port Lightning Protection | 6KV for uplink port |
| Store and forward | Yes |
| Exchange Capacity | 1.2 Gbps |
| Packet forwarding rate | 1.34Mpps |
| MAC Address Table | 1K |
| PoE supply management | Port 1-4 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +;3 6 7 8 - |
| Voltage input range | AC: 100-240V～50/60Hz DC: 51V 1.25A |
| Dimensions ( W x D x H ) | 100*100*26mm |
| Power Consumption | In full configuration: 63W PoE Max Power Supply: 58W |
| Port Features | Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. Extend:ports 1 to 4 are isolated from each other,but can communicate with ports 6 (uplink port) respectively. |
| Environment | Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
