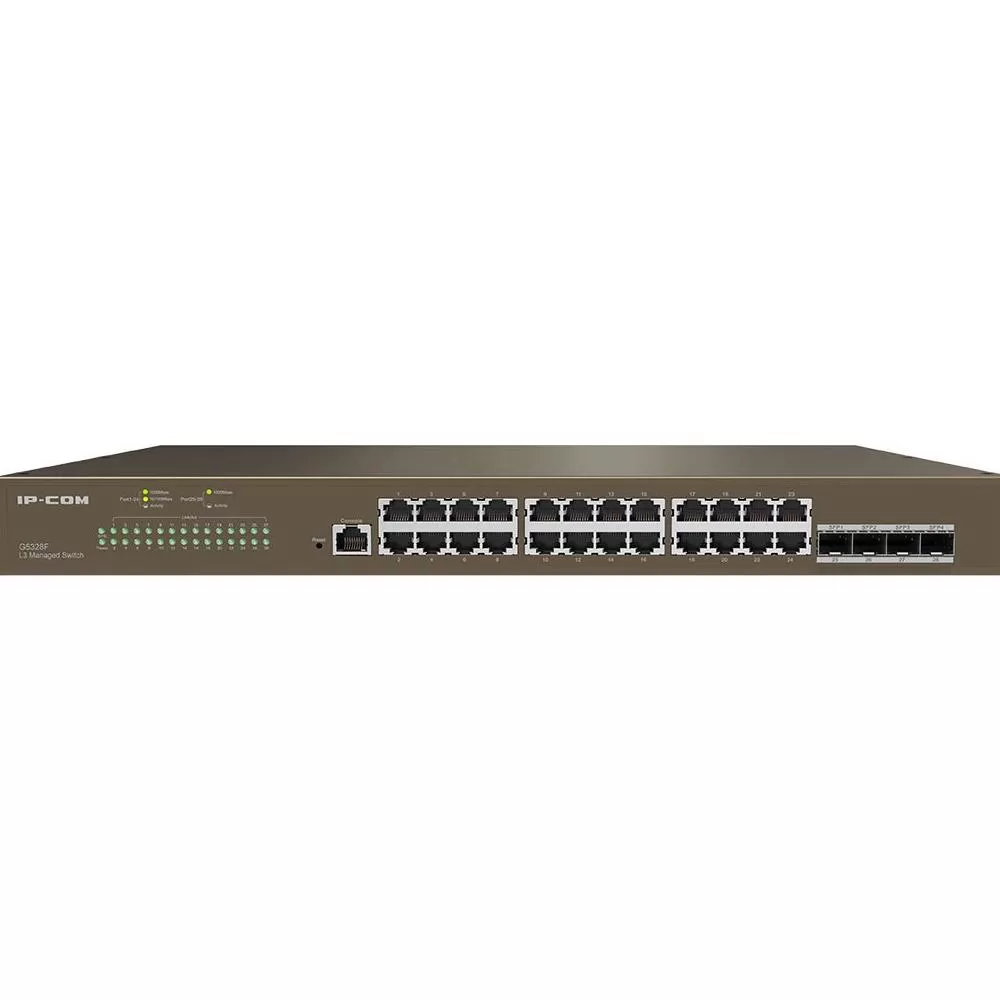

IP-COM IP-G5328F 24 PORT 10/100/1000 4 X SFP L3 YÖNETİLEBİLİR RACK MOUNT SWITCH METAL KASA
10.658,09 TL
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
G5328F L3 Managed Switch Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at standards 24 x 10/100/1000 Base-T Eth
Sepete eklemeden önce:
bu ürün için sipariş öncesi stok teyidi önerilir; WhatsApp üzerinden hızlı bilgi alabilirsiniz.
IP-COM IP-G5328F 24 PORT 10/100/1000 4 X SFP L3 YÖNETİLEBİLİR RACK MOUNT SWITCH METAL KASA
10.658,09 TL
Teknik Özellikler
| Port Sayısı | 24 Port |
| Veri Transfer Hızı | 10/100/1000 |
| POE Desteği | Yok |
| SFP Port | Var |
| Yönetim | Yönetilebilir |
| Rackmount | Var |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3ad,IEEE802.3z,IEEE802.3x,IEEE802.1p,IEEE802.1q,IEEE802.1w,IEEE802.1d,IEEE802.1s |
| LED indicators | One Link/Act LED indicator for each port One Power LED indicator for each device One SYS LED indicator for each device |
| Interfaces | 24 x 10/100/1000 Base-T Ethernet ports (Data/Power) 4 x 1000 Base-X SFP ports (Data) |
| Lightning protection | Port: 6kV Power: 6kV |
| Forwarding mode | Store-and-forward |
| Switching capability | 56Gbps |
| Packet forwarding rate | 41.7Mpps |
| Buffer | 12Mbit |
| MAC address table | 16K |
| Input voltage | AC：100-240V～ 50/60Hz |
| Dimensions | 440 mm x 178.8 mm x 44 mm(L*W*H) |
| Operating environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | CCC、FCC、CE、RoHS |
| Security features | Supports ARP receiving limit Supports unknown MAC address discard Supports DoS attack defense Supports 802.1x security authentication Supports Radius authentication |
| VLAN | Supports IEEE 802.1Q VLAN Supports VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid |
| DHCP | Supports DHCP Server Supports DHCP Relay Supports DHCP Snooping Supports Option 82 policy configuration |
| L3 Routing | Supports VLAN-based routing Supports IPv4 static routing Supports static ARP |
| Port aggregation | Supports static aggregation Supports LACP dynamic aggregation |
| Spanning tree | Supports IEEE 802.1d STP (Spanning Tree Protocol) Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics |
| Multicast | Supports IGMP Snooping V1/V2/V3 Supports port fast leave |
| Port Mirroring | Supports N: 1 port mirroring |
| QoS | Supports SP (Strict Priority) Supports SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8 queue service quality mapping |
| ACL | Supports MAC ACL Supports IP ACL |
| Loading and upgrade | Supports FTP/TFTP/HTTP upgrade Supports configuration import and export |
| Cloud management | Supports configuration delivery from IMS cloud platform Supports log reporting and fault detection Supports remote maintenance: reboot, backup, upgrade |
| Local visualization management | Supports router, switch, AP, IP camera discovery Supports automatic generation of topology Supports online/offline status detection for devices Supports remotely rebooting the IP camera |
| Management and maintenance | Supports Telnet configuration, Console port configuration Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/Tracert Detection |
G5328F
L3 Managed Switch
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at standards
- 24 x 10/100/1000 Base-T Ethernet ports (Data/Power), 4 separate 1000 Base-X SFP ports，1 x Console port
- 16 K MAC address table and MAC address auto-learning
- 12Mb large buffer
- Switching capability: 56Gbps
- Supports abundant services, such as static routing based on IPv4, DHCP Server, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet
- Support IMS cloud management and local visualization management
| Hardware specifications | |
|---|---|
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3ad,IEEE802.3z,IEEE802.3x,IEEE802.1p,IEEE802.1q,IEEE802.1w,IEEE802.1d,IEEE802.1s |
| LED indicators | One Link/Act LED indicator for each port One Power LED indicator for each device One SYS LED indicator for each device |
| Interfaces | 24 x 10/100/1000 Base-T Ethernet ports (Data/Power) 4 x 1000 Base-X SFP ports (Data) |
| Lightning protection | Port: 6kV Power: 6kV |
| Forwarding mode | Store-and-forward |
| Switching capability | 56Gbps |
| Packet forwarding rate | 41.7Mpps |
| Buffer | 12Mbit |
| MAC address table | 16K |
| Input voltage | AC：100-240V～ 50/60Hz |
| Dimensions | 440 mm x 178.8 mm x 44 mm(L*W*H) |
| Operating environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | CCC、FCC、CE、RoHS |
| Software specifications | |
| Security features | Supports ARP receiving limit Supports unknown MAC address discard Supports DoS attack defense Supports 802.1x security authentication Supports Radius authentication |
| VLAN | Supports IEEE 802.1Q VLAN Supports VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid |
| DHCP | Supports DHCP Server Supports DHCP Relay Supports DHCP Snooping Supports Option 82 policy configuration |
| L3 Routing | Supports VLAN-based routing Supports IPv4 static routing Supports static ARP |
| Port aggregation | Supports static aggregation Supports LACP dynamic aggregation |
| Spanning tree | Supports IEEE 802.1d STP (Spanning Tree Protocol) Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics |
| Multicast | Supports IGMP Snooping V1/V2/V3 Supports port fast leave |
| Port Mirroring | Supports N: 1 port mirroring |
| QoS | Supports SP (Strict Priority) Supports SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8 queue service quality mapping |
| ACL | Supports MAC ACL Supports IP ACL |
| Loading and upgrade | Supports FTP/TFTP/HTTP upgrade Supports configuration import and export |
| Cloud management | Supports configuration delivery from IMS cloud platform Supports log reporting and fault detection Supports remote maintenance: reboot, backup, upgrade |
| Local visualization management | Supports router, switch, AP, IP camera discovery Supports automatic generation of topology Supports online/offline status detection for devices Supports remotely rebooting the IP camera |
| Management and maintenance | Supports Telnet configuration, Console port configuration Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/Tracert Detection |
