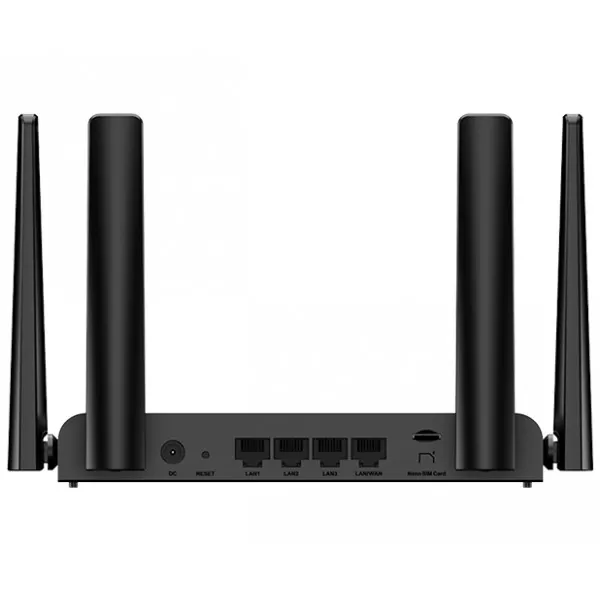

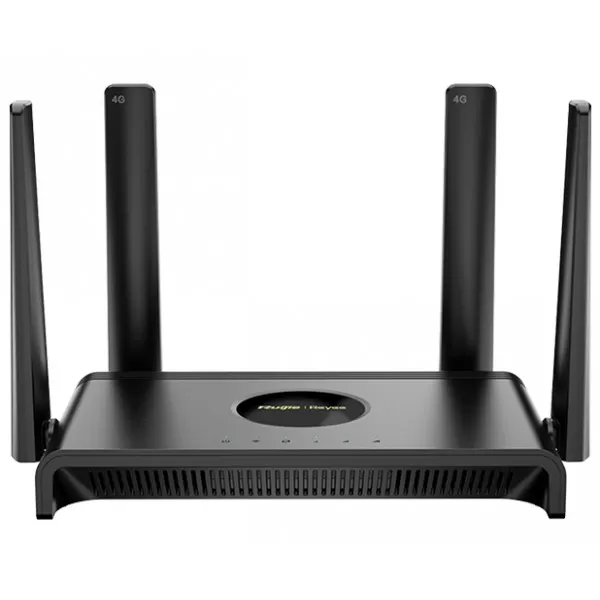

RUIJIE REYEE RG-EW300T 300MBPS 4 PORT 4 ANTEN 2.4GHz 4G LTE SIM KART GİRİŞLİ ROUTER

Product Specification

Overview

Reyee RG-EW300T N300 Wireless 4G LTE Router SIM 150Mbps 4-Port LAN,1-Port LAN 100Mbps   Mode Router, Repeater, WISP, Ruijie Cloud

Managed  Monitor by Ruijie Cloud  Cloud License

Dimensions (W×D×H)

175mm×100mm×25mm
(6.89 in. ×4.72 in. ×1.06 in. antennas not included)

Weight

0.25kg (packages not included)

WIFI

Wi-Fi Standards

Wi-Fi 4 (IEEE 802.11n)

MIMO

2.4 GHz, 2×2, MIMO

Max. Wi-Fi Speed

2.4 GHz: 300 Mbps

4G Cartgory

Downlink: 150Mbps Uplink: 50Mbps

Channel Width

2.4 GHz: Auto/20/40 MHz

Antennas

2 Detachable External 4G LTE Antennas
2 Fixed External Wi-Fi Antennas

Antennas Type

External Omnidirectional

Antennas Gain

2.4 GHz: 4dBi
4G LTE: 3dBi

Port

1×10/100Base-T WAN/LAN
3×10/100Base-T LAN

Card Slot

1× Micro SIM Card Slot

Recommended Users

Power Supply

DC 12V/1.0A

Power Consumption

< 12 W

Wi-Fi Operation Frequency Bands

802.11b/g/n: 2.400 GHz to 2.483 GHz
country-specific restrictions apply

Network Type

WCDMA B1/B5/B8 (2100/850/900 MHz)
FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE B38/B40 (2300/2500 MHz)

Transmit Power

2.4GHz Wi-Fi: 2400~2483.5MHz ≤ 20dBm(EIRP)
WCDMA B1/B5/B8 ≤ 24dBm
FDD-LTE B1/B3/B5/B7/B8/B20/B28≤ 23dBm
TDD-LTE B38/B40/B41≤ 23dBm

Receive Sensitivity

2.4GHz Wi-Fi:20MHz

802.11b: -79 dBm(1 Mbps) ,802.11g: -81dBm(6 Mbps), -64 dBm(54 Mbps)
802.11n: -81dBm(MCS0), -63 dBm(MCS7)
WCDMA B1/B5: –109 dbm (primary set)
WCDMA B8:-108.3 dbm (primary set)

LTE-FDD B1: –97.3 dbm (primary set), –98.4 dbm (diversity), –100.2 dbm (primary set + diversity)
LTE-FDD B3: –96.4 dbm (primary set), –96.4 dbm (diversity), –99.4 dbm (primary set + diversity)
LTE-FDD B5:-96.3 dbm (primary set),-99.1 dbm (diversity),-101.95 dbm (primary set + diversity)
LTE-FDD B7:-96.06 dbm (primary set),-96.36 dbm (diversity),-97.6 dbm (primary set + diversity)
LTE-FDD B8:-97.4 dbm (main set), -98.2 dbm (diversity), -102.05 dbm (main set + diversity)
LTE-FDD B20: –96.2 dbm (primary set), –97.5 dbm (diversity), –100.75 dbm (primary set + diversity)
LTE-FDD B28: –96.7 dbm (primary set), –97.9 dbm (diversity), –97.55 dbm (primary set + diversity)
LTE-TDD B38:-98.26 dbm (primary set),-97 dbm (diversity),-99.3 dbm (primary set + diversity)

Operating Temperature

-10 °C to +40 °C (14 °F to 104 °F)

Operating Humidity

5% to 95% RH (non-condensing)

Certifications

CE, RoHS

Wireless

Maximum Number of SSIDs

SSID Hiding

Guest Wi-Fi

WPA/WPA2

WPA3

Roaming

Layer 2 Roaming

Wi-Fi Optimization

Support

QoS (WMM)

Support

Transmission Power Adjustment

Support

Hardware

CPU

MT7628DAN

Flash

16 MB

RAM/SDRAM

64 MB

System LED Indicator

Support

WAN

3G/4G Router
Static IP
DHCP
PPPoE
Learning PPPoE Account & Password

VLAN Tagging

Support

LAN

DHCP Server

Support

Client List

Support

Static IP Assignment

Support

Features

TR069

Support

IPv6

Support

DDNS

Support

IPTV

Support

Diagnosis

Support

UPnP

Support

ARP Binding

Support

Port Mapping

Support

DMZ Host

Support

MAC Address Cloning

Support

Cloud Management

Support

Repeater Mode

Support

WISP Mode

Support

Security

VPN

-

L2TP VPN Client

-

System

Default Access/Password

192.168.110.1 Check the label on the bottom of the device for the default password.

URL Access

Support

Upgrade

Local Upgrade
Online Upgrade
APP Upgrade

Syslog

Support

Backup

Support

System

Factory Reset

Support

Language

Chinese
English
Vietanmese
Turkish
Indonesian
Thai
traditioanl Chinese
Spanish
Russian
Arabic
Ukrainian
Czech
Italian

, Adapter 1
