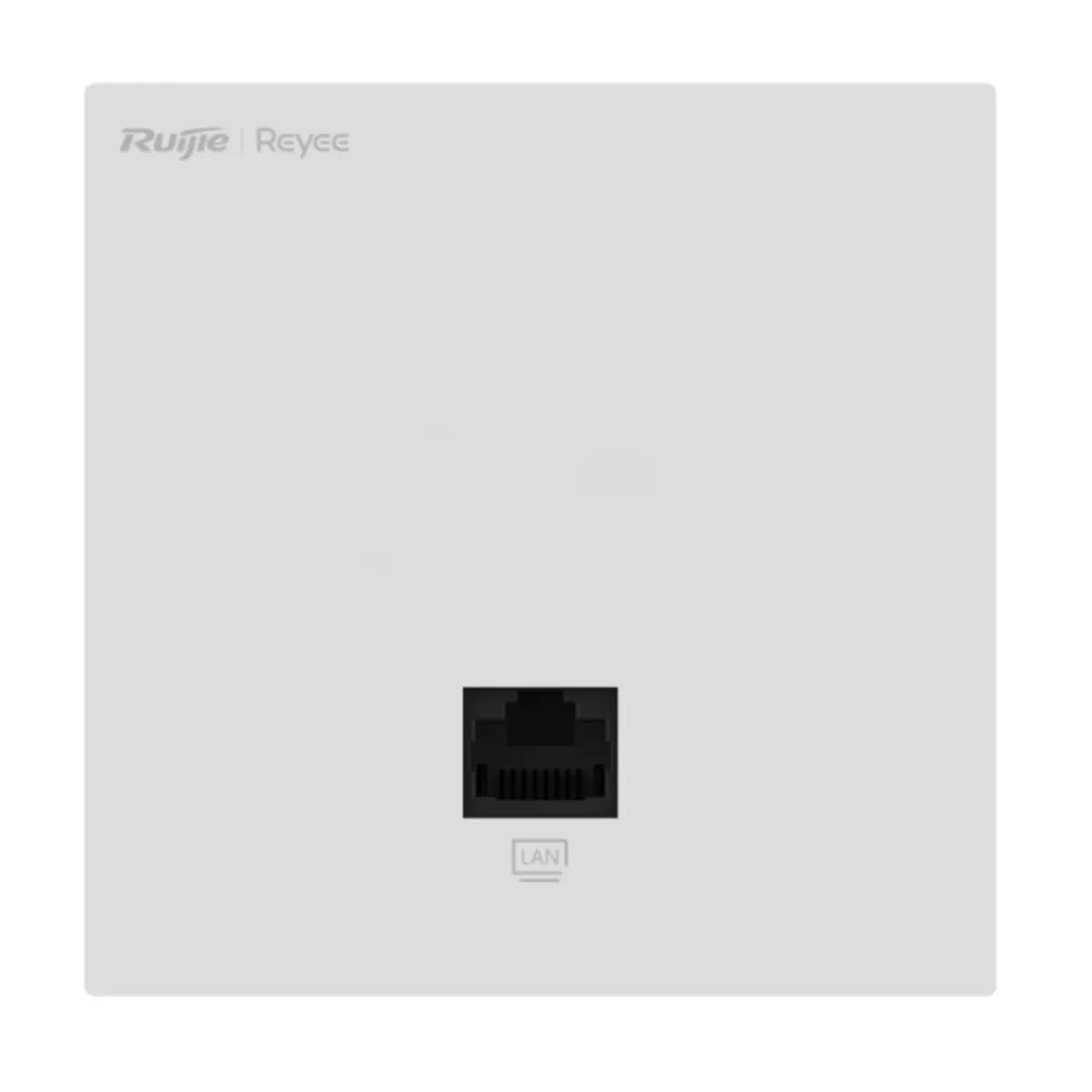

RUIJIE REYEE RG-RAP1261 AX3000 Wi-Fi 6 2 X GE PORT 2.4 GHZ & 5 GHZ POE ADAPTORSUZ INDOOR/WALL MOUNT ACCESS POINT
4.948,40 TL
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
RUIJIE REYEE RG-RAP1261 Wi-Fi Standards 802.11a/n/ac/ax 802.11b/g/n/ax MIMO 2.4 GHz, 2x2, MU-MIMO 5 GHz, 2x2, MU-MIMO Max. Data Rate 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps Number of Antennas 5 Antenna Type Built-in omnidirec
Sepete eklemeden önce:
bu ürün için sipariş öncesi stok teyidi önerilir; WhatsApp üzerinden hızlı bilgi alabilirsiniz.
RUIJIE REYEE RG-RAP1261 AX3000 Wi-Fi 6 2 X GE PORT 2.4 GHZ & 5 GHZ POE ADAPTORSUZ INDOOR/WALL MOUNT ACCESS POINT
4.948,40 TL
Teknik Özellikler
Enhanced User Experience
| Wi-Fi Optimization | Yes |
| STA Limiting | Yes |
| Removing Low-RSSI STAs | Yes |
| Syslog Recording Why Users Lose Connection | Yes |
| Auto Channel and Power Adjustment on Cloud | Yes |
| RSSI Threshold for STA Access | Yes |
| Load Balancing | Yes |
Environment
| Operating Temperature | 0°C to 40°C (32°F to 104°F ) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F ) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Ingress Protection Rating (IP Rating) | IP41 |
| Surge Protection | +/–4kV |
| MTBF | 400,000 hours |
Hardware Features
| Factory Reset | Yes |
| Language | Chinese |
| System Log | Yes |
| Diagnostics | Yes |
| Network Check | Yes |
| LED | 1 x System status LED |
| Reset Hole | 1 x Reset hole |
| Dimensions (W x D x H) | 86 mm x 86 mm x 42.4 mm (3.39 in. x 3.39 in. x 1.67 in.) |
| Weight | 0.16 kg (without the mounting bracket) |
| Installation Method | In-wall mounting |
| Pole Diameter | N/A |
| Power Supply | IEEE 802.3af/at PoE |
| Max. Power Consumption | 10.2 W |
| PoE Power Budget | N/A |
Networks
| Network Access Mode | PPPoE Client |
| DHCP Client | Static IP |
| Avoidance of WAN IP Address Conflicts | Yes |
| VLAN | Port-based VLAN |
| VLAN over 802.1Q | TV projection screen |
| DHCP Server | Yes |
Package Contents
| RG-RAP1261 Access Point | 1 |
| Power Adapter | N/A |
| User Manual | 1 |
| Cat5e UTP Cable | N/A |
| Screw | 2 |
| Certification | CE |
Software Features
| Max. Number of Concurrent STAs | 512 |
| Recommended Number of Concurrent STAs | 110 |
| Max. Number of SSIDs | 8 |
| Supported Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz |
| 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, | 5.725 GHz to 5.850 GHz |
System
| Cloud Management | Yes |
| App Management | Yes |
| App Upgrade | Yes |
| App Restart | Yes |
| Scheduled Restart | Yes |
| Default Access/Password | 10.44.77.254 |
| Local Upgrade | Yes |
| Online Upgrade | Yes |
| Backup | Yes |
WLAN Basic Features
| Power Adjustment | Yes |
| Channel Bandwidth | 2.4 GHz: Auto/20 MHz/40 MHz |
| Roaming | Layer 2 roaming |
| Layer 3 roaming | 802.11k/v/r roaming |
| OFDMA | Yes |
| Beamforming | Yes |
| Target Wake Time (TWT)* | Yes |
| Wi-Fi Multimedia (WMM)) | Yes |
| Radar Signal Detection and Frequency Hopping (DFS) | Yes |
WLAN Security
| Wi-Fi Password | 16 characters |
| Security Mode | WAP-PSK, WAP2-PSK, and WPA-WAP2-PSK |
| Blocklist and Allowlist | Yes |
Teknik Özellikler
| Kategori | Access Point |
| POE Desteği | Var |
| 3G/4G Desteği | Yok |
| Port Sayısı | 1 Port |
| Ortam | İç Ortam |
| Frekans | AX Wi-Fi6 |
| SFP Desteği | Yok |
| USB Desteği | Yok |
| Wi-Fi Standards | 802.11a/n/ac/ax |
| MIMO | 2.4 GHz, 2x2, MU-MIMO |
| Max. Data Rate | 2.4 GHz: 574 Mbps |
| Number of Antennas | 5 |
| Antenna Type | Built-in omnidirectional antennas |
| Antenna Gain | 2.4 GHz: 1.6 dBi; |
| 5 GHz:: 4.13 dBi | Note: The peak gain mentioned above refers to the gain of a single antenna. |
| Transmit Power | Frequency bands using and the max EIRP: |
| Note: Country specific restrictions apply | European Union & United Kingdom |
| 2400-2483.5 MHz, EIRP= 20 dBm | 5150-5350 MHz, EIRP= 23 dBm |
| 5470-5725 MHz, EIRP= 30 dBm | United States: |
| 2400-2483.5 MHz, max output power=30dBm & EIRP = 36 dBm | 5150-5250 MHz, max output power=30dBm & EIRP = 36 dBm |
| 5250-5350 MHz, max output power | 5470-5725 MHz, max output power |
| 5725-5825 MHz, max output power=30dBm & EIRP = 36 dBm | Myanmar : |
| 2400-2483.5 MHz, EIRP = 23 dBm | 5725-5825 MHz, EIRP = 30 dBm |
| Thailand: | 2400-2483.5 MHz, EIRP = 20 dBm |
| 5150-5350 MHz, EIRP = 23 dBm | 5470-5725 MHz, EIRP = 30 dBm |
| 5725-5825 MHz, EIRP = 30 dBm | Indonesia: |
| 2400-2483.5 MHz, EIRP = 27 dBm | 5150-5350 MHz, EIRP = 23 dBm |
| 5725-5825 MHz, EIRP = 23 dBm | Egypt: |
| 2400-2483.5 MHz, EIRP = 20 dBm | 5150-5350 MHz, EIRP = 23 dBm |
| Fixed Ports | 1 x 10/100/1000Base-T Ethernet uplink port |
| 1 x 10/100/1000Base-T Ethernet downlink ports | 1 x Reset hole |
RUIJIE REYEE RG-RAP1261
| Wi-Fi Standards | 802.11a/n/ac/ax |
| 802.11b/g/n/ax | |
| MIMO | 2.4 GHz, 2x2, MU-MIMO |
| 5 GHz, 2x2, MU-MIMO | |
| Max. Data Rate | 2.4 GHz: 574 Mbps |
| 5 GHz: 2402 Mbps | |
| Number of Antennas | 5 |
| Antenna Type | Built-in omnidirectional antennas |
| Antenna Gain | 2.4 GHz: 1.6 dBi; |
| 5 GHz:: 4.13 dBi | |
| Note: The peak gain mentioned above refers to the gain of a single antenna. | |
| Transmit Power | Frequency bands using and the max EIRP: |
| Note: Country specific restrictions apply | |
| European Union & United Kingdom | |
| 2400-2483.5 MHz, EIRP= 20 dBm | |
| 5150-5350 MHz, EIRP= 23 dBm | |
| 5470-5725 MHz, EIRP= 30 dBm | |
| United States: | |
| 2400-2483.5 MHz, max output power=30dBm & EIRP = 36 dBm | |
| 5150-5250 MHz, max output power=30dBm & EIRP = 36 dBm | |
| 5250-5350 MHz, max output power<24dBm & EIRP = 30 dBm | |
| 5470-5725 MHz, max output power<24dBm & EIRP = 30 dBm | |
| 5725-5825 MHz, max output power=30dBm & EIRP = 36 dBm | |
| Myanmar : | |
| 2400-2483.5 MHz, EIRP = 23 dBm | |
| 5725-5825 MHz, EIRP = 30 dBm | |
| Thailand: | |
| 2400-2483.5 MHz, EIRP = 20 dBm | |
| 5150-5350 MHz, EIRP = 23 dBm | |
| 5470-5725 MHz, EIRP = 30 dBm | |
| 5725-5825 MHz, EIRP = 30 dBm | |
| Indonesia: | |
| 2400-2483.5 MHz, EIRP = 27 dBm | |
| 5150-5350 MHz, EIRP = 23 dBm | |
| 5725-5825 MHz, EIRP = 23 dBm | |
| Egypt: | |
| 2400-2483.5 MHz, EIRP = 20 dBm | |
| 5150-5350 MHz, EIRP = 23 dBm | |
| Fixed Ports | 1 x 10/100/1000Base-T Ethernet uplink port |
| 1 x 10/100/1000Base-T Ethernet downlink ports | |
| 1 x Reset hole | |
| Software Features | |
| Max. Number of Concurrent STAs | 512 |
| Recommended Number of Concurrent STAs | 110 |
| Max. Number of SSIDs | 8 |
| Supported Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz |
| 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, | |
| 5.725 GHz to 5.850 GHz | |
| Note: Country-specific restrictions apply. | |
| WLAN Basic Features | |
| Power Adjustment | Yes |
| Channel Bandwidth | 2.4 GHz: Auto/20 MHz/40 MHz |
| 5 GHz: Auto/20 MHz/40 MHz/80 MHz/160 MHz | |
| Roaming | Layer 2 roaming |
| Layer 3 roaming | |
| 802.11k/v/r roaming | |
| OFDMA | Yes |
| Beamforming | Yes |
| Target Wake Time (TWT)* | Yes |
| Wi-Fi Multimedia (WMM)) | Yes |
| Radar Signal Detection and Frequency Hopping (DFS) | Yes |
| WLAN Security | |
| Wi-Fi Password | 16 characters |
| Security Mode | WAP-PSK, WAP2-PSK, and WPA-WAP2-PSK |
| Blocklist and Allowlist | Yes |
| Enhanced User Experience | |
| Wi-Fi Optimization | Yes |
| STA Limiting | Yes |
| Removing Low-RSSI STAs | Yes |
| Removing Low-RSSI STAs | Yes |
| Syslog Recording Why Users Lose Connection | Yes |
| Auto Channel and Power Adjustment on Cloud | Yes |
| RSSI Threshold for STA Access | Yes |
| Load Balancing | Yes |
| Networks | |
| Network Access Mode | PPPoE Client |
| DHCP Client | |
| Static IP | |
| Avoidance of WAN IP Address Conflicts | Yes |
| VLAN | Port-based VLAN |
| VLAN over 802.1Q | |
| TV projection screen | |
| DHCP Server | Yes |
| System | |
| Cloud Management | Yes |
| App Management | Yes |
| App Upgrade | Yes |
| App Restart | Yes |
| Scheduled Restart | Yes |
| Default Access/Password | 10.44.77.254 |
| The factory status password: admin | |
| Local Upgrade | Yes |
| Online Upgrade | Yes |
| Backup | Yes |
| Hardware Features | |
| Factory Reset | Yes |
| Language | Chinese |
| English | |
| System Log | Yes |
| Diagnostics | Yes |
| Network Check | Yes |
| LED | 1 x System status LED |
| Reset Hole | 1 x Reset hole |
| Dimensions (W x D x H) | 86 mm x 86 mm x 42.4 mm (3.39 in. x 3.39 in. x 1.67 in.) |
| Weight | 0.16 kg (without the mounting bracket) |
| Installation Method | In-wall mounting |
| Pole Diameter | N/A |
| Power Supply | IEEE 802.3af/at PoE |
| Max. Power Consumption | 10.2 W |
| PoE Power Budget | N/A |
| Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F ) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F ) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Ingress Protection Rating (IP Rating) | IP41 |
| Surge Protection | +/–4kV |
| MTBF | 400,000 hours |
| Package Contents | |
| RG-RAP1261 Access Point | 1 |
| Power Adapter | N/A |
| User Manual | 1 |
| Cat5e UTP Cable | N/A |
| Screw | 2 |
| Certification | CE |
