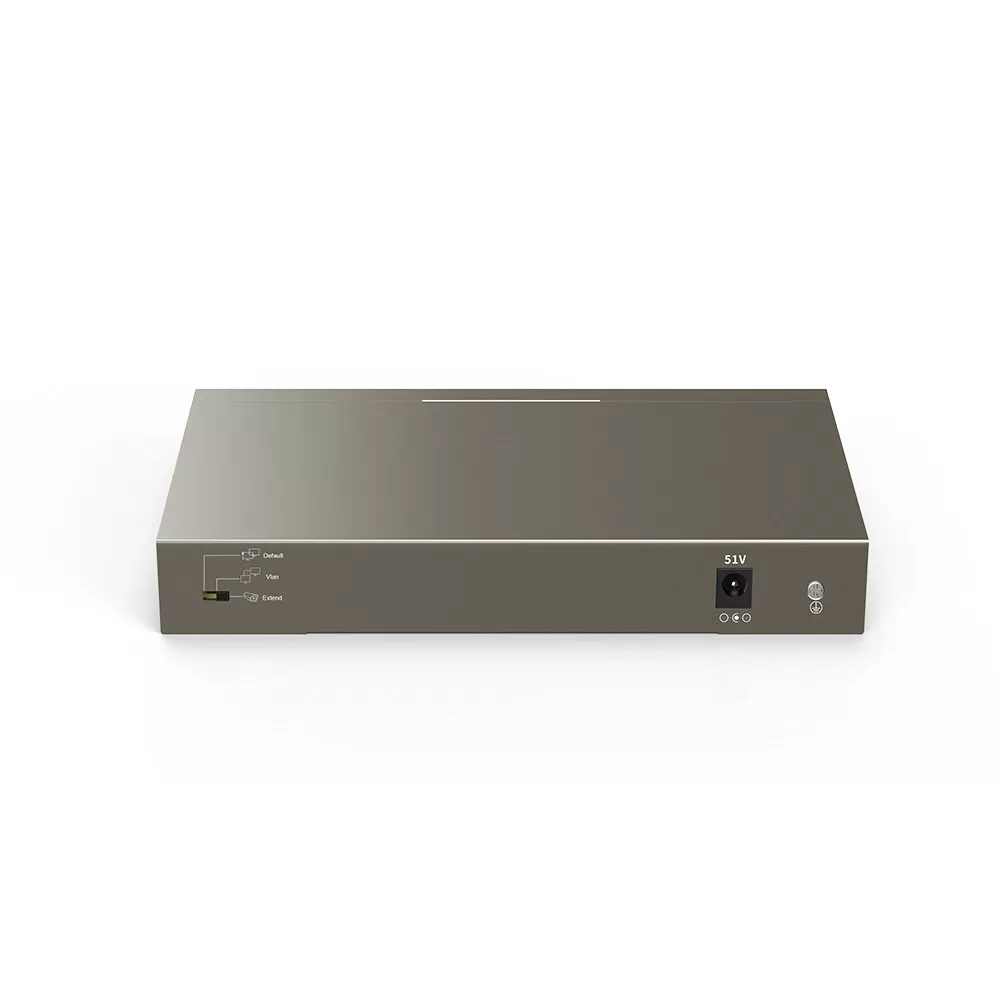

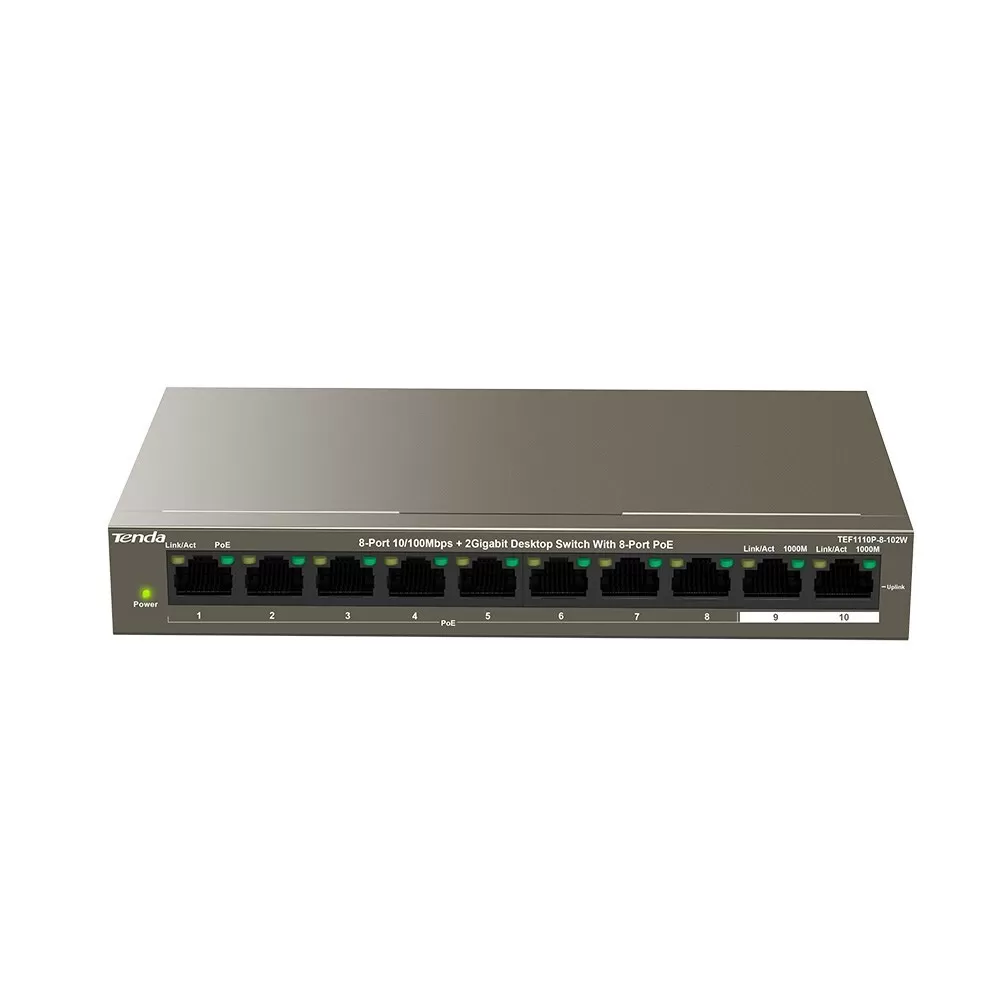

TENDA TEF1110P-8-102W 10 PORT 10/100 8 PORT POE 2 PORT GIGABIT UPLINK 102W YONETILEMEZ DESKTOP SWITCH
4.491,62 TL
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
TENDA TEF1110P-8-102W 10 PORT 10/100 8 PORT POE 2 PORT GIGABIT UPLINK 102W YONETILEMEZ DESKTOP SWITCH Network standards IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at LED Indicator 10* Link/Ack LED indicat
Sepete eklemeden önce:
bu ürün için sipariş öncesi stok teyidi önerilir; WhatsApp üzerinden hızlı bilgi alabilirsiniz.
TENDA TEF1110P-8-102W 10 PORT 10/100 8 PORT POE 2 PORT GIGABIT UPLINK 102W YONETILEMEZ DESKTOP SWITCH
4.491,62 TL
Teknik Özellikler
| Port Sayısı | 8 Port |
| Veri Transfer Hızı | 10/100 |
| SFP Port | Yok |
| Yönetim | Yönetilemez |
| Rackmount | Yok |
| Uplink Port | 2 PORT UPLINK |
| Network standards | IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| LED Indicator | 10* Link/Ack LED indicators |
| Interfaces | 8 * 10/100 Base-TX Ethernet ports (Data/Power) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 177.5mmx104.0mmx26.0mm |
| Level of protection | Lightning protection for ports: 6KV |
| Lightning protection for power: 4KV | ESD: |
| Air discharge: ±10kV | Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 5.6 Gbps |
| Packet forwarding rate | 1.48Mpps |
| Buffer | 448K |
| MAC address table | 16K |
| PoE budget | Single port: AF: 15.4W, AT: 30W |
| Power consumption | / |
| Input voltage | 100－240V AC 50/60Hz |
| Mounting | Desktop mounting: support |
| Wall mounting: support | Rack mounting:non-support |
| Environment | Operating Temperature: 0℃~45℃ |
| Storage Temperature: -40℃~70℃ | Operating Humidity: 10%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Funtions | Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. |
| VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. | Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps). |
TENDA TEF1110P-8-102W 10 PORT 10/100 8 PORT POE 2 PORT GIGABIT UPLINK 102W YONETILEMEZ DESKTOP SWITCH
| Network standards | IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| LED Indicator | 10* Link/Ack LED indicators |
| 1 * Power LED indicator | |
| Interfaces | 8 * 10/100 Base-TX Ethernet ports (Data/Power) |
| 2 * 10/100/1000 Base-TX Ethernet ports (Data) | |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 177.5mmx104.0mmx26.0mm |
| Level of protection | Lightning protection for ports: 6KV |
| Lightning protection for power: 4KV | |
| ESD: | |
| Air discharge: ±10kV | |
| Contact discharge: ±8kV | |
| Forwarding mode | Store-and-forward |
| Switch capacity | 5.6 Gbps |
| Packet forwarding rate | 1.48Mpps |
| Buffer | 448K |
| MAC address table | 16K |
| PoE budget | Single port: AF: 15.4W, AT: 30W |
| Whole device: 99W | |
| Power consumption | / |
| Input voltage | 100－240V AC 50/60Hz |
| 51V /2.1A DC（Power Adapter ） | |
| Mounting | Desktop mounting: support |
| Wall mounting: support | |
| Rack mounting:non-support | |
| Environment | Operating Temperature: 0℃~45℃ |
| Storage Temperature: -40℃~70℃ | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Certification | FCC、CE、RoHS |
| Funtions | Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. |
| VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. | |
| Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps). |
