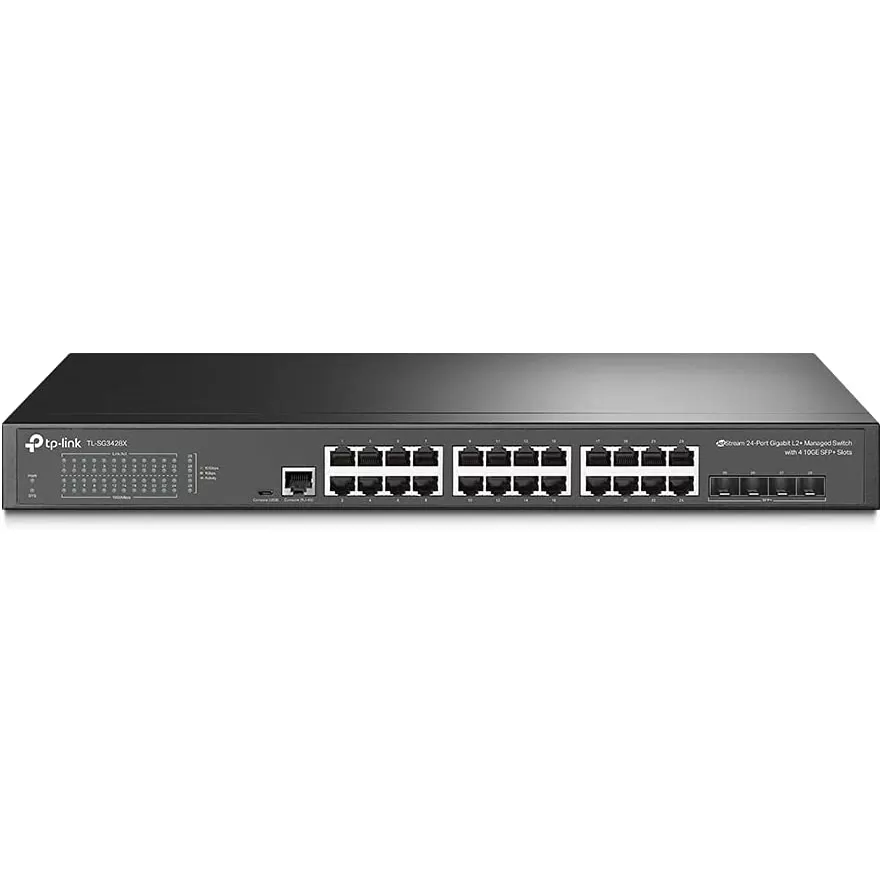

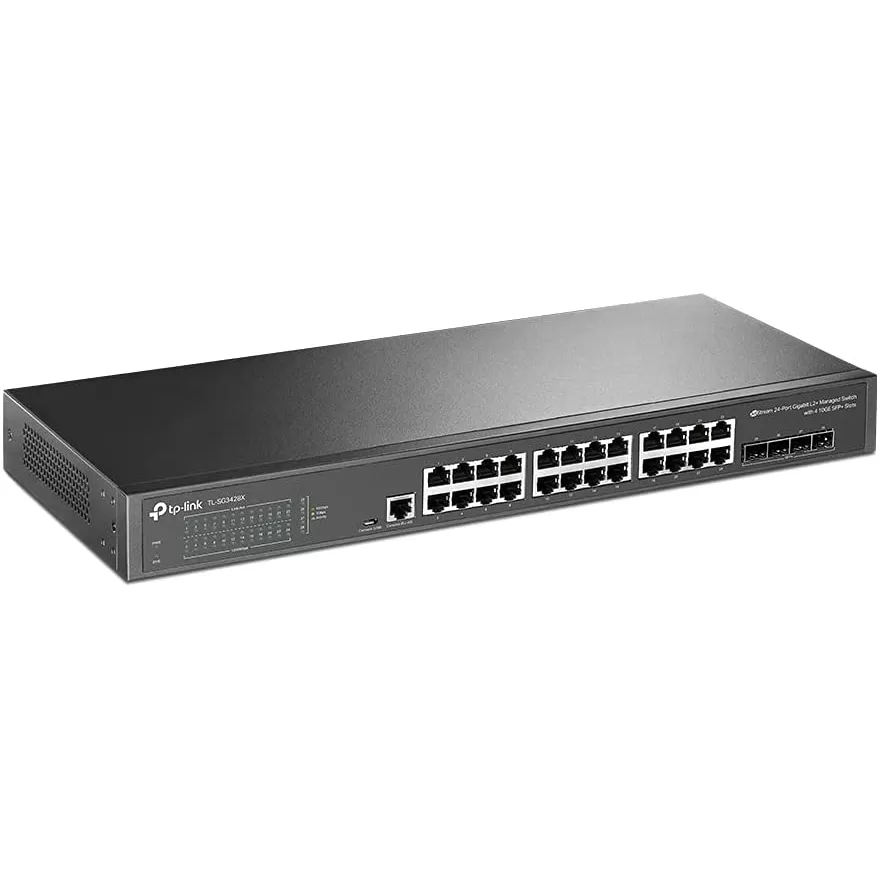

TP-LINK OMADA TL-SG3428X 24 PORT 10/100/1000 4 X SFP YONETILEBILIR RACK MOUNT SWITCH
16.371,59 TL
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
TP-LINK OMADA TL-SG3428X 24 PORT 10/100/1000 4 X SFP YONETILEBILIR RACK MOUNT SWITCH TL-SG3428X JetStream 24-Port Gigabit L2+ 4 10GE SFP+ Yuvalı Yönetilen Switch 10G Yıldırım Hızında Yukarı Bağlantı: 4 × 10 Gbps SFP + yu
Sepete eklemeden önce:
bu ürün için sipariş öncesi stok teyidi önerilir; WhatsApp üzerinden hızlı bilgi alabilirsiniz.
TP-LINK OMADA TL-SG3428X 24 PORT 10/100/1000 4 X SFP YONETILEBILIR RACK MOUNT SWITCH
16.371,59 TL
Teknik Özellikler
| Port Sayısı | 24 Port |
| Veri Transfer Hızı | 10/100/1000 |
| POE Desteği | Yok |
| SFP Port | Var |
| Yönetim | Yönetilebilir |
| Rackmount | Var |

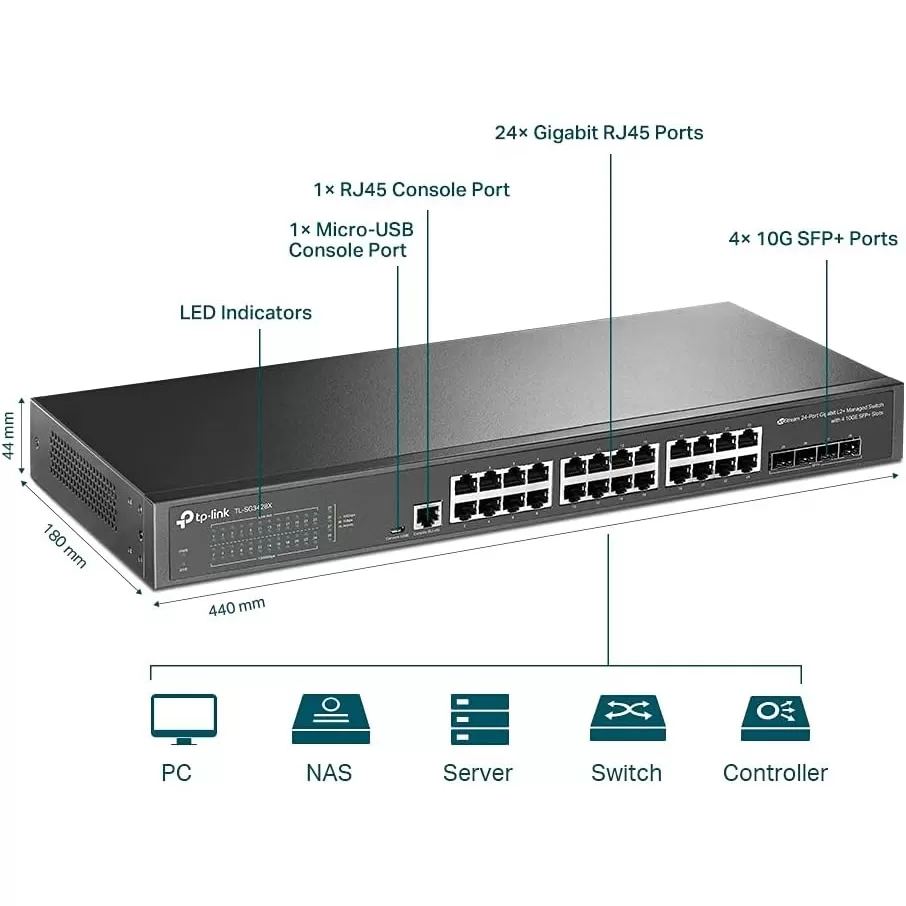

| Arabirim | • 24× 10/100/1000 Mbps RJ45 Ports |
| • 4× 10G SFP+ Slots | • 1× RJ45 Console Port |
| Fan Sayısı | Fanless |
| Güç Kaynağı | 100-240 V AC~50/60 Hz |
| Boyutlar ( W X D X H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Montaj | Rack Mountable |
| Maks. Güç Tüketimi | 23.6 W (110V/60Hz) |
| Max Heat Dissipation | 80.353 BTU/h (110 V/60 Hz) |
| Anahtarlama Kapasitesi | 128 Gbps |
| Paket Yönlendirme Hızı | 95.23 Mpps |
| MAC Adres Tablosu | 16 K |
| Paket Buffer Belleği | 12 Mbit |
| Jumbo Frame | 9 KB |
| Quality of Service | • 8 priority queues |
| • 802.1p CoS/DSCP priority | • Queue scheduling |
| - SP (Strict Priority) | - WRR (Weighted Round Robin) |
| - SP+WRR | • Bandwidth Control |
| - Port/Flow based Rating Limiting | • Smoother Performance |
| • Action for Flows | - Mirror (to supported interface) |
| - Redirect (to supported interface) | - Rate Limit |
| L2 ve L2+ Özellikleri | • Link Aggregation |
| - static link aggregation | - 802.3ad LACP |
| - Up to 8 aggregation groups, containing 8 ports per group | • Spanning Tree Protocol |
| - 802.1d STP | - 802.1w RSTP |
| - 802.1s MSTP | - STP Security: TC Protect, BPDU Filter, Root Protect |
| • Loopback Detection | - Port based |
| - VLAN based | • Flow Control |
| - 802.3x Flow Control | - HOL Blocking Prevention |
| • Mirroring | - Port Mirroring |
| - CPU Mirroring | - One-to-One |
| - Many-to-One | - Tx/Rx/Both |
| L2 Multicast | • IGMP Snooping |
| - IGMP v1/v2/v3 Snooping | - Fast Leave |
| - IGMP Snooping Querier | - IGMP Authentication |
| • IGMP Authentication | • MLD Snooping |
| - MLD v1/v2 Snooping | - Fast Leave |
| - MLD Snooping Querier | - Static Group Config |
| - Limited IP Multicast | • MVR |
| VLAN | • VLAN Group |
| - Max 4K VLAN Groups | • 802.1Q Tagged VLAN |
| • MAC VLAN: 7 Entries | • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 |
| • Private VLAN | • GVRP |
| • VLAN VPN (QinQ) | - Port-Based QinQ |
| - Selective QinQ | • Voice VLAN |
| Erişim Kontrol Listesi | • Time-based ACL |
| • MAC ACL | - Source MAC |
| - Destination MAC | - VLAN ID |
| - User Priority | - Ether Type |
| • IP ACL | -Source IP |
| - Destination IP | - Fragment |
| - IP Protocol | - TCP Flag |
| - TCP/UDP Port | - DSCP/IP TOS |
| - User Priority | • Combined ACL |
| • Packet Content ACL | • IPv6 ACL |
| • Policy | - Mirroring |
| - Redirect | - Rate Limit |
| - QoS Remark | • ACL apply to Port/VLAN |
| Güvenlik | • IP-MAC-Port Binding |
| - 512 Entries | - DHCP Snooping |
| - ARP Inspection | - IPv4 Source Guard: 100 Entries |
| • IPv6-MAC-Port Binding | - 512 Entries |
| - DHCPv6 Snooping | - ND Detection |
| - IPv6 Source Guard: 100 Entries | • DoS Defend |
| • Static/Dynamic Port Security | - Up to 64 MAC addresses per port |
| • Broadcast/Multicast/Unicast Storm Control | - kbps/ratio control mode |
| • 802.1X | - Port base authentication |
| - Mac base authentication | - VLAN Assignment |
| - MAB | - Guest VLAN |
| - Support Radius authentication andaccountability | • AAA (including TACACS+) |
| • Port Isolation | • Secure web management through HTTPS with SSLv3/TLS 1.2 |
| • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | • IP/Port/MAC based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 |
| • Multicast Listener Discovery (MLD) Snooping | • IPv6 ACL |
| • IPv6 Interface | • Static IPv6 Routing |
| • IPv6 neighbor discovery (ND) | • Path maximum transmission unit (MTU) discovery |
| • Internet Control Message Protocol (ICMP) version 6 | • TCPv6/UDPv6 |
| • IPv6 applications | - DHCPv6 Client |
| - Ping6 | - Tracert6 |
| - Telnet (v6) | - IPv6 SNMP |
| - IPv6 SSH | - IPv6 SSL |
| - Http/Https | - IPv6 TFTP |
| L3 Özellikleri | • 16 IPv4/IPv6 Interfaces |
| • Static Routing | - 48 static routes |
| • Static ARP | - 128 Static Entries |
| • Proxy ARP | • Gratuitous ARP |
| • DHCP Server | • DHCP Relay |
| - DHCP Interface Relay | - DHCP VLAN Relay |
| Yönetim | • Web-based GUI |
| • Command Line Interface (CLI) through the console port, telnet | • SNMP v1/v2c/v3 |
| - Trap/Inform | - RMON (1,2,3,9 groups) |
| • SDM Template | • DHCP/BOOTP Client |
| • 802.1ab LLDP/LLDP-MED | • DHCP AutoInstall |
| • Dual Image, Dual Configuration | • CPU Monitoring |
| • Cable Diagnostics | • EEE |
| • Password Recovery | • SNTP |
| Gelişmiş Özellikler | • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller |
| • Automatic Device Discovery | • Batch Configuration |
| • Batch Firmware Upgrading | • Intelligent Network Monitoring |
| • Abnormal Event Warnings | • Unified Configuration |
| • Reboot Schedule | • ZTP (Zero-Touch Provisioning)* |
| MIBs | • MIB II (RFC1213) |
| • Interface MIB (RFC2233) | • Ethernet Interface MIB (RFC1643) |
| • Bridge MIB (RFC1493) | • P/Q-Bridge MIB (RFC2674) |
| • RMON MIB (RFC2819) | • RMON2 MIB (RFC2021) |
| • Radius Accounting Client MIB (RFC2620) | • Radius Authentication Client MIB (RFC2618) |
| • Remote Ping, Traceroute MIB (RFC2925) | • Support TP-Link private MIB |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | • Omada Hardware Controller (OC200) |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI |
| • System Log | DİĞERLERİ |
| Sertifika | CE, FCC, RoHS |
| Paket İçeriği | • TL-SG3428X Switch |
| • Power Cord | • Quick Installation Guide |
| • Rackmount Kit | • Rubber Feet |
| Sistem Gereksinimleri | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Ortam | • Operating Temperature: 0–45 ℃ (32–113 ℉); |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | • Operating Humidity: 10–90% RH non-condensing |
TP-LINK OMADA TL-SG3428X 24 PORT 10/100/1000 4 X SFP YONETILEBILIR RACK MOUNT SWITCH
TL-SG3428X
JetStream 24-Port Gigabit L2+ 4 10GE SFP+ Yuvalı Yönetilen Switch
- 10G Yıldırım Hızında Yukarı Bağlantı: 4 × 10 Gbps SFP + yuvaları, yüksek bant genişliğinde bağlantı ve blokajsız anahtarlama kapasitesi sağlar.
- Gigabit Hızları: 24 × gigabit RJ45 bağlantı noktaları, diğer anahtarlara ve cihazlara yüksek hızlı ve güvenilir bağlantılar sunar.
- Omada SDN'ye entegre edilmiştir: Zero-Touch Provisioning (ZTP)*, Merkezi Bulut Yönetimi ve Akıllı İzleme.
- Merkezi Yönetim: Ultra rahatlık ve kolay yönetim için bulut erişimi ve Omada uygulaması.
- Sağlam Güvenlik Stratejileri: IP-MAC-Port Bağlama, ACL, Port Güvenliği, DoS Savunma, Dalga kontrolü, DHCP Gözetleme, 802.1X, Radius Kimlik Doğrulama ve daha fazlası.
- Ses ve Video Uygulamalarını Optimize Edin: L2/L3/L4 QoS ve IGMP gözetleme.
- Bağımsız Yönetim: Web, CLI (Konsol Portu, Telnet, SSH), SNMP, RMON ve Çift Görüntü güçlü yönetim yetenekleri sunar
DONANIM ÖZELLİKLERİ Arabirim • 24× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port Fan Sayısı Fanless Güç Kaynağı 100-240 V AC~50/60 Hz Boyutlar ( W X D X H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Montaj Rack Mountable Maks. Güç Tüketimi 23.6 W (110V/60Hz) Max Heat Dissipation 80.353 BTU/h (110 V/60 Hz) PERFORMANS Anahtarlama Kapasitesi 128 Gbps Paket Yönlendirme Hızı 95.23 Mpps MAC Adres Tablosu 16 K Paket Buffer Belleği 12 Mbit Jumbo Frame 9 KB YAZILIM ÖZELLİKLERİ Quality of Service • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark L2 ve L2+ Özellikleri • Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile VLAN • VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 7 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN Erişim Kontrol Listesi • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN Güvenlik • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control IPv6 • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP L3 Özellikleri • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay Yönetim • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log Gelişmiş Özellikler • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)* MIBs • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB YÖNETİM Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) İADE KOŞULLARIYorum yapmak için giriş yapmanız gerekiyor...
