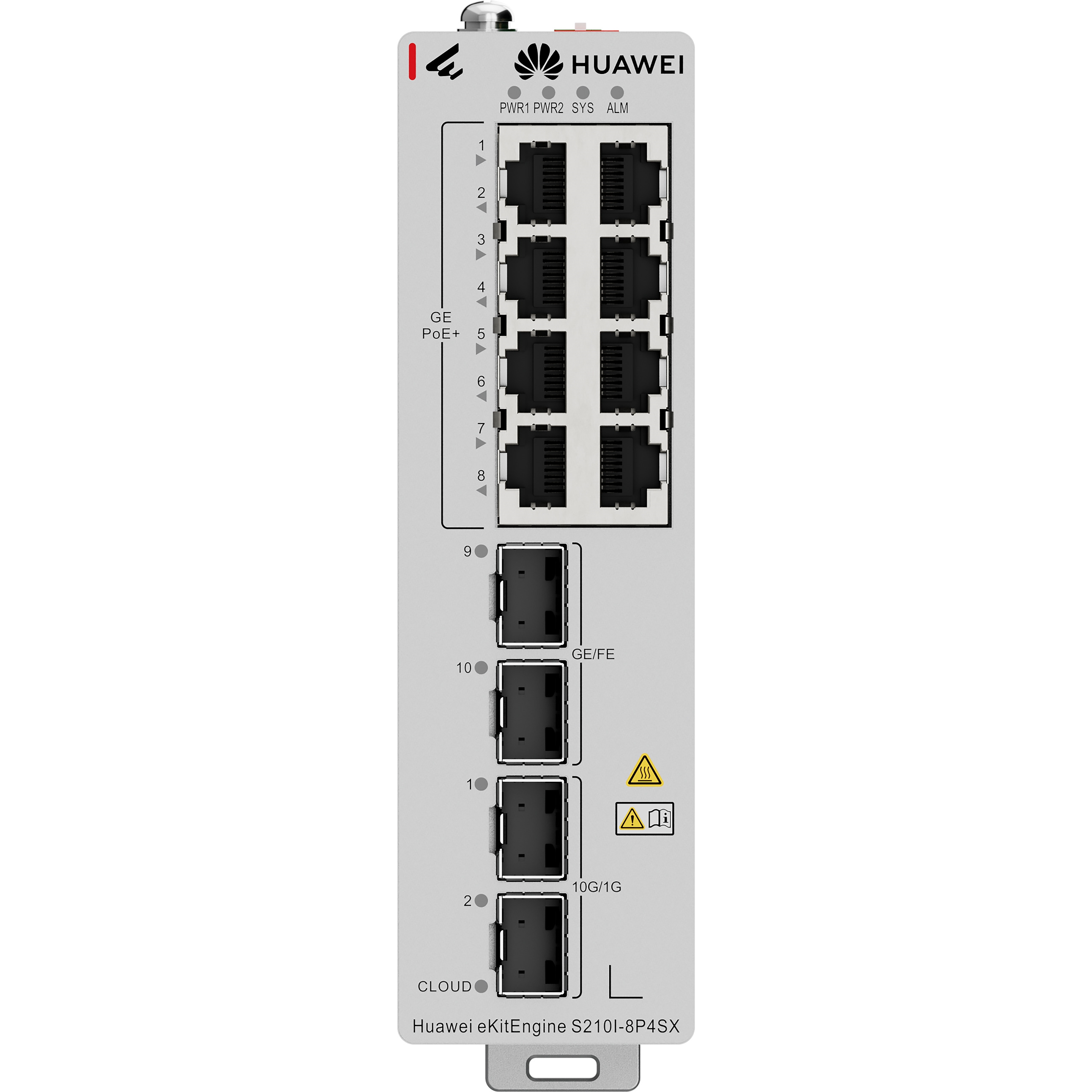

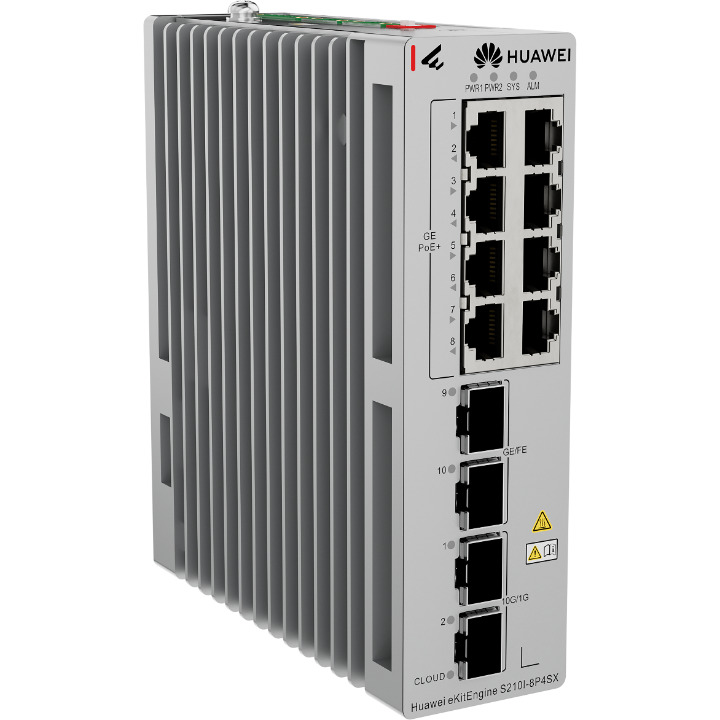

HUAWEI eKIT S210I-8T4SX 8 PORT 10/100/1000 2 X 2.5GE SFP + 2 X 10G SFP+ L2 CLOUDE YÖNETİLEBİLİR ENDUSTRİYEL SWITCH
11.817,74 TL
Satın alma
ERTESİ GÜN TESLİMATA UYGUNAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
HUAWEI eKIT S210I-8T4SX8 PORT 10/100/1000 2 X 2.5GE SFP + 2 X 10G SFP+ L2 CLOUDE YÖNETİLEBİLİR ENDUSTRİYEL SWITCH Item Specification Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the part
Sepete eklemeden önce:
lütfen ürün adedini ve varsa ürün seçeneklerini kontrol ediniz. Seçilen seçenek stokta bulunmuyorsa sepete ekleme yapılamaz.
HUAWEI eKIT S210I-8T4SX 8 PORT 10/100/1000 2 X 2.5GE SFP + 2 X 10G SFP+ L2 CLOUDE YÖNETİLEBİLİR ENDUSTRİYEL SWITCH
11.817,74 TL
Teknik Özellikler
| POE Desteği | Yok |
| Port Sayısı | 8 Port |
| SFP Port | Var |
| Item | Specification |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.) |
| Chassis height [U] | 3.65 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.975 kg (2.15 lb) |
| Weight with packaging [kg(lb)] | 1.34 kg (2.95 lb) |
| Typical power consumption [W] | 12.48 W |
| Typical heat dissipation [BTU/hour] | 42.58 BTU/hour |
| Maximum power consumption [W] | 16.2 W @ 60 V 13.2 W @ 12 V |
| Maximum heat dissipation [BTU/hour] | 55.28 @ 60 V 45.04 @ 12 V |
| Static power consumption [W] | 5.64 W |
| MTBF [years] | 138.479 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | 1+1 |
| Long-term operating temperature [°C(°F)] | 0–1800 m (0–5906 ft.) altitude, industrial optical modules: Sealed cabinet: –40°C to +65°C (–40°F to +149°F) Vented cabinet (≥ 40 LFM): –40°C to +70°C (–40°F to +158°F) Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +85°C (-40°F to +185°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | DC external |
| Rated input voltage [V] | DC input: 12 V DC to 48 V DC |
| Input voltage range [V] | DC input: 9.6 V DC to 60 V DC |
| Maximum input current [A] | 2.5 A |
| Flash memory | Physical space: 16 MB |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | DC power: ±2 kV in common mode and ±1 kV in differential mode |
| Ingress protection level (dustproof/waterproof) | IP40 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Not supported |
| Certification | EMC certification Safety certification Manufacturing certification |
HUAWEI eKIT S210I-8T4SX
8 PORT 10/100/1000 2 X 2.5GE SFP + 2 X 10G SFP+ L2 CLOUDE YÖNETİLEBİLİR ENDUSTRİYEL SWITCH
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.) |
| Chassis height [U] | 3.65 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.975 kg (2.15 lb) |
| Weight with packaging [kg(lb)] | 1.34 kg (2.95 lb) |
| Typical power consumption [W] | 12.48 W |
| Typical heat dissipation [BTU/hour] | 42.58 BTU/hour |
| Maximum power consumption [W] | 16.2 W @ 60 V 13.2 W @ 12 V |
| Maximum heat dissipation [BTU/hour] | 55.28 @ 60 V 45.04 @ 12 V |
| Static power consumption [W] | 5.64 W |
| MTBF [years] | 138.479 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | 1+1 |
| Long-term operating temperature [°C(°F)] | 0–1800 m (0–5906 ft.) altitude, industrial optical modules:
|
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +85°C (-40°F to +185°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | DC external |
| Rated input voltage [V] | DC input: 12 V DC to 48 V DC |
| Input voltage range [V] | DC input: 9.6 V DC to 60 V DC |
| Maximum input current [A] | 2.5 A |
| Flash memory | Physical space: 16 MB |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | DC power: ±2 kV in common mode and ±1 kV in differential mode |
| Ingress protection level (dustproof/waterproof) | IP40 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Not supported |
| Certification | EMC certification Safety certification Manufacturing certification |
