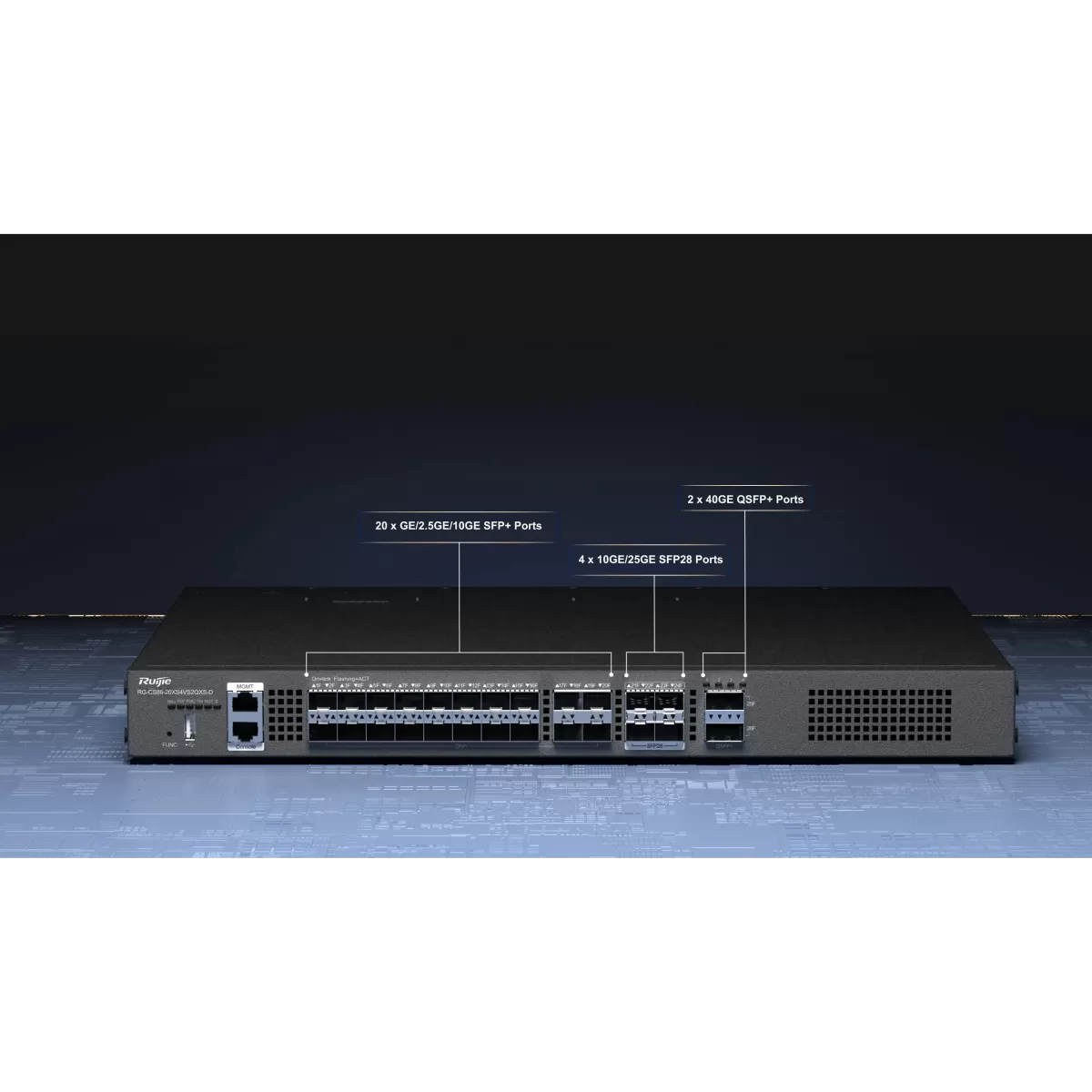

RUIJIE RG-CS86-20XS4VS2QXS-D 28 SFP 100/1000M 10/100/1000 2 x 40GBASE-X QSFP+ YONETILEBILIR RACK MOUNT SWITCH
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
Hardware Specifications Port Specifications RG-CS86-20XS4VS2QXS-D Fixed service port 20 x 1GE/2.5GE/10GE SFP+ ports 4 x 10GE/25GE SFP28 ports 2 x 40GE QSFP+ ports Note: One switch provides a maximum of 32 x 10GE ports. M
RUIJIE RG-CS86-20XS4VS2QXS-D 28 SFP 100/1000M 10/100/1000 2 x 40GBASE-X QSFP+ YONETILEBILIR RACK MOUNT SWITCH
Teknik Özellikler
| Feature | Description |
| Ethernet Switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q (supporting 4K VLANs) | Voice VLAN |
| Super VLAN, private VLAN | MAC VLAN, port-based VLAN, protocol-based VLAN, IP subnet-based VLAN |
| GVRP | Basic QinQ |
| STP, RSTP, and MSTP | ERPS (G.8032) |
| LLDP/LLDP-MED | LACP (IEEE 802.3ad) |
| IP Service | ARP |
| DHCP client, DHCP relay, and DHCP server | DHCP snooping |
| DNS | DHCPv6 client and DHCPv6 relay |
| DHCPv6 snooping | Neighbor Discovery (ND) and ND snooping |
| IP Routing | Static routing |
| RIP and RIPng | OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 |
| BGP4 and BGP4+ | IPv4 and IPv6 VRF |
| IPv4 and IPv6 PBR | Equal and Weighted Cost Multi-Path (ECMP) |
| Multicast | IGMP v1/v2/v3, and IGMP proxy |
| IGMP v1/v2/v3 snooping | PIM-DM, PIM-SM, and PIM-SSM |
| MSDP | MLD v1/v2 |
| MLD snooping v1/v2 | PIM-SMv6 and PIM-SSM v6 |
| ACL and QoS | Standard IP ACLs Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
| ACL redirection | Port traffic rate limiting |
| Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | Congestion avoidance: tail drop, RED, and WRED |
| Security | Multiple AAA modes |
| RADIUS and TACAS+ | Port-based and MAC-based 802.1x authentication |
| Web authentication | HTTPS |
| SSHv1, SSHv2 | Global IP-MAC binding |
| Port isolation and port security | IP source guard |
| SAVI | CPP and NFPP |
| Reliability | REUP, RLDP, DLDP |
| IPv4 VRRP v2/v3 and IPv6 VRRP | BFD |
| Hot swapping of power modules and cables | 3-level fan speed adjustment Fan fault alarm |
| Device virtualization | VSU |
| NMS and maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow | NTP and SNTP |
| FTP and TFTP | SNMP v1/v2/v3 |
| RMON (1, 2, 3, 9) | Telnet |
| NETCONF | CWMP (TR-069) standard protocol |
| gRPC | Cloud and SON |
| Port Sayısı | 24 Port |
| Yönetim | Yönetilebilir |
| Port Specifications | RG-CS86-20XS4VS2QXS-D |
| Fixed service port | 20 x 1GE/2.5GE/10GE SFP+ ports 4 x 10GE/25GE SFP28 ports 2 x 40GE QSFP+ ports Note: One switch provides a maximum of 32 x 10GE ports. |
| Module slot | 2 x power module slots 2 x fan power module slots |
| Power module | RG-PA150I-F |
| Fan module | M1SFAN I-F (pre-installed 2) |
| Fixed management port | 1 x RJ45 console port 1 x RJ45 MGMT port |
| USB | 1 x USB port |
| System Specifications | RG-CS86-20XS4VS2QXS-D |
| Packet forwarding rate | 570 Mpps |
| Switching capacity | 760 Gbps |
| CPU | Dual-core CPU, with a clock speed up to 1.25 GHz |
| BootROM | 16 MB (storing boot software for 1+1 boot redundancy) |
| Flash memory | 1 GB (storing boot software for 1+1 boot redundancy) |
| Memory | 1 GB |
| Switch buffer | 4 MB |
| MAC address table size | 32,768 |
| ARP table size | 16,000 |
| Number of IPv4 unicast routes | 16,000 |
| Number of IPv4 multicast routes | 4,000 |
| Number of IPv6 unicast routes | 16,000 |
| Number of IPv6 multicast routes | 2,000 |
| Number of ACEs | In: 2,500 Out: 1,000 |
| Number of VSU members | 2 |
| Dimensions and Weight | RG-CS86-20XS4VS2QXS-D |
| Unit dimensions (W x D x H) | 440 mm x 330 mm x 43.6 mm (17.32 in. x 12.99 in. x 1.72 in.) |
| Shipping dimensions (W x D x H) | 545 mm x 500 mm x 232 mm (21.46 in. x 19.69 in. x 9.13 in.) |
| Rack height | 1 RU |
| Unit weight | 4.6 kg (10.14 lbs) (empty chassis with 2 fan modules) |
| Shipping weight | 6.40 kg (14.11 lbs) (empty chassis with 2 fan modules) |
| Power Supply and Consumption | RG-CS86-20XS4VS2QXS-D |
| Power supply | 2 x pluggable power modules |
| Power module redundancy | 1+1 power redundancy |
| Power input | RG-PA150I-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 3 A |
| Maximum output power | RG-PA150I-F: 150 W |
| Maximum power consumption | 85 W |
| Environment and Reliability | RG-CS86-20XS4VS2QXS-D |
| Temperature | Operating temperature: 0°C to 50°C (32°F to 122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
| Altitude | Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
| Mean time between failure (MTBF) | 200,000 hours (about 22 years) |
| Fan | 2 x pluggable fan modules |
| Fan redundancy | 1+1 redundancy |
| Heat dissipation | Fan cooling, front-to-rear airflow |
| Acoustic noise | ≤ 78 dB |
| Power module hot swapping | Supported |
| USB hot swapping | Supported |
| Cable hot swapping | Supported |
| Power supply monitoring | Monitoring of power supply model and status Power supply failure alarming |
| Fan monitoring | Fan speed regulating and alarm function |
| Temperature monitoring | Temperature alarming |
| ESD | ESD Contact/Air Discharge: 6kV/8kV ESD Susceptibility Contact/Air Discharge: 8 kV/15kV |
| Surge protection | MGMT port: 4 kV Service port: 10 kV Power port: common mode 6 kV, differential mode 6 kV |
| Conformal coating | Conformal coating supported (key components only) |
| Certifications and Regulatory Compliance | RG-CS86-20XS4VS2QXS-D |
| Safety regulation | IEC 62368-1 |
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
Hardware Specifications
|
Port Specifications |
RG-CS86-20XS4VS2QXS-D |
|
Fixed service port |
20 x 1GE/2.5GE/10GE SFP+ ports 4 x 10GE/25GE SFP28 ports 2 x 40GE QSFP+ ports Note: One switch provides a maximum of 32 x 10GE ports. |
|
Module slot |
2 x power module slots 2 x fan power module slots |
|
Power module |
RG-PA150I-F |
|
Fan module |
M1SFAN I-F (pre-installed 2) |
|
Fixed management port |
1 x RJ45 console port 1 x RJ45 MGMT port |
|
USB |
1 x USB port |
|
System Specifications |
RG-CS86-20XS4VS2QXS-D |
|
Packet forwarding rate |
570 Mpps |
|
Switching capacity |
760 Gbps |
|
CPU |
Dual-core CPU, with a clock speed up to 1.25 GHz |
|
BootROM |
16 MB (storing boot software for 1+1 boot redundancy) |
|
Flash memory |
1 GB (storing boot software for 1+1 boot redundancy) |
|
Memory |
1 GB |
|
Switch buffer |
4 MB |
|
MAC address table size |
32,768 |
|
ARP table size |
16,000 |
|
Number of IPv4 unicast routes |
16,000 |
|
Number of IPv4 multicast routes |
4,000 |
|
Number of IPv6 unicast routes |
16,000 |
|
Number of IPv6 multicast routes |
2,000 |
|
Number of ACEs |
In: 2,500 Out: 1,000 |
|
Number of VSU members |
2 |
|
Dimensions and Weight |
RG-CS86-20XS4VS2QXS-D |
|
Unit dimensions (W x D x H) |
440 mm x 330 mm x 43.6 mm (17.32 in. x 12.99 in. x 1.72 in.) |
|
Shipping dimensions (W x D x H) |
545 mm x 500 mm x 232 mm (21.46 in. x 19.69 in. x 9.13 in.) |
|
Rack height |
1 RU |
|
Unit weight |
4.6 kg (10.14 lbs) (empty chassis with 2 fan modules) |
|
Shipping weight |
6.40 kg (14.11 lbs) (empty chassis with 2 fan modules) |
|
Power Supply and Consumption |
RG-CS86-20XS4VS2QXS-D |
|
Power supply |
2 x pluggable power modules |
|
Power module redundancy |
1+1 power redundancy |
|
Power input |
RG-PA150I-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 3 A |
|
Maximum output power |
RG-PA150I-F: 150 W |
|
Maximum power consumption |
85 W |
|
Environment and Reliability |
RG-CS86-20XS4VS2QXS-D |
|
Temperature |
Operating temperature: 0°C to 50°C (32°F to 122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
|
Humidity |
Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
|
Altitude |
Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
|
Mean time between failure (MTBF) |
200,000 hours (about 22 years) |
|
Fan |
2 x pluggable fan modules |
|
Fan redundancy |
1+1 redundancy |
|
Heat dissipation |
Fan cooling, front-to-rear airflow |
|
Acoustic noise |
≤ 78 dB |
|
Power module hot swapping |
Supported |
|
USB hot swapping |
Supported |
|
Cable hot swapping |
Supported |
|
Power supply monitoring |
Monitoring of power supply model and status Power supply failure alarming |
|
Fan monitoring |
Fan speed regulating and alarm function |
|
Temperature monitoring |
Temperature alarming |
|
ESD |
ESD Contact/Air Discharge: 6kV/8kV ESD Susceptibility Contact/Air Discharge: 8 kV/15kV |
|
Surge protection |
MGMT port: 4 kV Service port: 10 kV Power port: common mode 6 kV, differential mode 6 kV |
|
Conformal coating |
Conformal coating supported (key components only) |
|
Certifications and Regulatory Compliance |
RG-CS86-20XS4VS2QXS-D |
|
Safety regulation |
IEC 62368-1 |
|
EMC regulation |
EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
Software Specifications
|
RG-CS86-20XS4VS2QXS-D |
|
|
Feature |
Description |
|
Ethernet Switching |
Jumbo frame (maximum length: 9,216 bytes) |
|
IEEE 802.1Q (supporting 4K VLANs) |
|
|
Voice VLAN |
|
|
Super VLAN, private VLAN |
|
|
MAC VLAN, port-based VLAN, protocol-based VLAN, IP subnet-based VLAN |
|
|
GVRP |
|
|
Basic QinQ |
|
|
STP, RSTP, and MSTP |
|
|
ERPS (G.8032) |
|
|
LLDP/LLDP-MED |
|
|
LACP (IEEE 802.3ad) |
|
|
IP Service |
ARP |
|
DHCP client, DHCP relay, and DHCP server |
|
|
DHCP snooping |
|
|
DNS |
|
|
DHCPv6 client and DHCPv6 relay |
|
|
DHCPv6 snooping |
|
|
Neighbor Discovery (ND) and ND snooping |
|
|
IP Routing |
Static routing |
|
RIP and RIPng |
|
|
OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 |
|
|
BGP4 and BGP4+ |
|
|
IPv4 and IPv6 VRF |
|
|
IPv4 and IPv6 PBR |
|
|
Equal and Weighted Cost Multi-Path (ECMP) |
|
|
Multicast |
IGMP v1/v2/v3, and IGMP proxy |
|
IGMP v1/v2/v3 snooping |
|
|
PIM-DM, PIM-SM, and PIM-SSM |
|
|
MSDP |
|
|
MLD v1/v2 |
|
|
MLD snooping v1/v2 |
|
|
PIM-SMv6 and PIM-SSM v6 |
|
|
IGMP filtering, IGMP immediate leave |
|
|
ACL and QoS |
Standard IP ACLs Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
|
ACL redirection |
|
|
Port traffic rate limiting |
|
|
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ |
|
|
Congestion avoidance: tail drop, RED, and WRED |
|
|
802.1p/DSCP/ToS traffic classification Eight priority queues per port |
|
|
Security |
Multiple AAA modes |
|
RADIUS and TACAS+ |
|
|
Port-based and MAC-based 802.1x authentication |
|
|
Web authentication |
|
|
HTTPS |
|
|
SSHv1, SSHv2 |
|
|
Global IP-MAC binding |
|
|
Port isolation and port security |
|
|
IP source guard |
|
|
SAVI |
|
|
CPP and NFPP |
|
|
Strict and loose RPF |
|
|
Reliability |
REUP, RLDP, DLDP |
|
IPv4 VRRP v2/v3 and IPv6 VRRP |
|
|
BFD |
|
|
Hot swapping of power modules and cables |
|
|
3-level fan speed adjustment Fan fault alarm |
|
|
Device virtualization |
VSU |
|
NMS and maintenance |
SPAN, RSPAN, and ERSPAN |
|
sFlow |
|
|
NTP and SNTP |
|
|
FTP and TFTP |
|
|
SNMP v1/v2/v3 |
|
|
RMON (1, 2, 3, 9) |
|
|
Telnet |
|
|
NETCONF |
|
|
CWMP (TR-069) standard protocol |
|
|
gRPC |
|
|
Cloud and SON |
|
