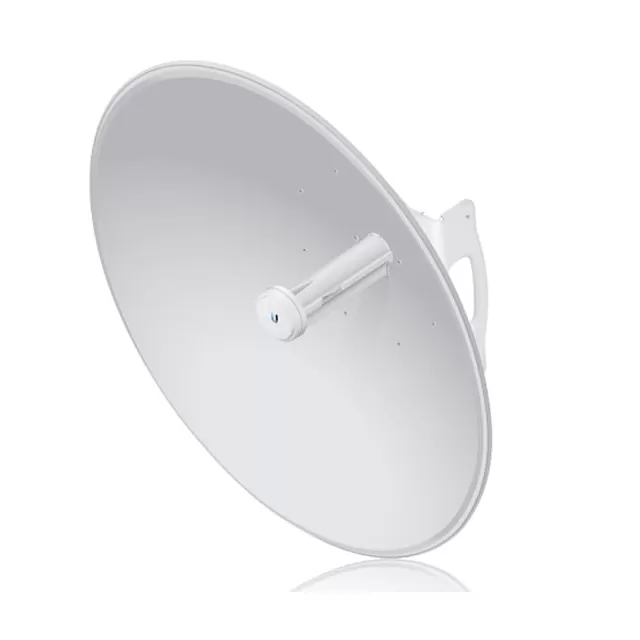

UBIQUITI POWERBEAM PBE-5AC-620 5GHZ 29DBI OUTDOOR ACCESS POINT
14.769,06 TL
Satın alma
TEYİT GEREKLİAdedi seçin ve doğrudan sepete ekleyin. Destek için alternatif kanallar aşağıda hazır.
-
UBNT POWERBEAM PBE-5AC-620 5GHZ 29DBI OUTDOOR ACCESS POINT 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate. 5 GHz, 25+ km link range 450+ Mbps throughput Improved mounting Dedicated spectral analysis radi
Sepete eklemeden önce:
bu ürün için sipariş öncesi stok teyidi önerilir; WhatsApp üzerinden hızlı bilgi alabilirsiniz.
UBIQUITI POWERBEAM PBE-5AC-620 5GHZ 29DBI OUTDOOR ACCESS POINT
14.769,06 TL
Teknik Özellikler
| Kategori | Access Point |
| Ortam | Dış Ortam |
| Frekans | 5 GHz |
| POE Desteği | Var |
| Port Sayısı | 1 Port |
| 3G/4G Desteği | Yok |
| SFP Desteği | Yok |
| USB Desteği | Yok |
| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind loading | Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20-27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| Gain | 29 dBi |
| Max. VSWR | 1.6:1 |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Polarization | Dual linear |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
UBNT POWERBEAM PBE-5AC-620 5GHZ 29DBI OUTDOOR ACCESS POINT
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
5 GHz, 25+ km link range
450+ Mbps throughput
Improved mounting
Dedicated spectral analysis radio
Dedicated WiFi management radio
Note. This product should be purchased in pairs in order to form links.
| Mechanical | |
|---|---|
| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind loading | Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20-27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| System | |
| Gain | 29 dBi |
| Max. VSWR | 1.6:1 |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating Frequency (Mhz) | |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
